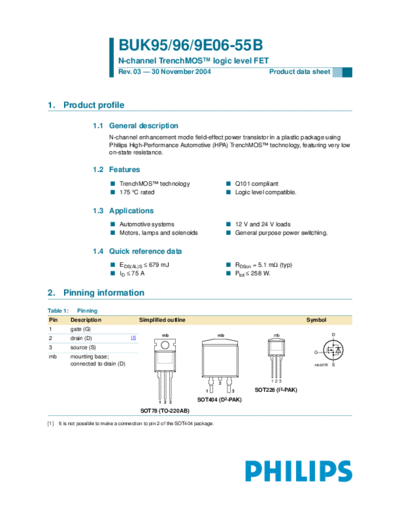

                                 BUK95/96/9E06-55B
                                 N-channel TrenchMOSTM logic level FET
                                 Rev. 03 -- 30 November 2004                                        Product data sheet




1. Product profile

                       1.1 General description
                             N-channel enhancement mode field-effect power transistor in a plastic package using
                             Philips High-Performance Automotive (HPA) TrenchMOSTM technology, featuring very low
                             on-state resistance.

                       1.2 Features
                             s TrenchMOSTM technology                                s Q101 compliant
                             s 175
