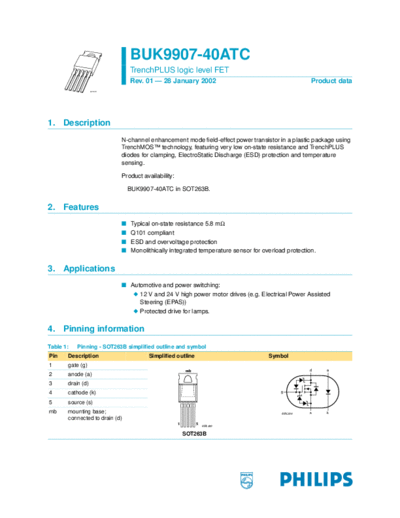

Image preview - the first page of the document



>> Download buk9907-40atc documenatation <<

Text preview - extract from the document

                                BUK9907-40ATC
                                TrenchPLUS logic level FET
                                Rev. 01 -- 28 January 2002                                          Product data
                   M3D745




1. Description
                            N-channel enhancement mode field-effect power transistor in a plastic package using
                            TrenchMOSTM technology, featuring very low on-state resistance and TrenchPLUS
                            diodes for clamping, ElectroStatic Discharge (ESD) protection and temperature
                            sensing.

                            Product availability:

                                BUK9907-40ATC in SOT263B.


2. Features
                            s    Typical on-state resistance 5.8 m
                            s    Q101 compliant
                            s    ESD and overvoltage protection
                            s    Monolithically integrated temperature sensor for overload protection.


3. Applications
                            s Automotive and power switching:
                               x 12 V and 24 V high power motor drives (e.g. Electrical Power Assisted
                                 Steering (EPAS))
                               x Protected drive for lamps.


4. Pinning information
Table 1:   Pinning - SOT263B simplified outline and symbol
Pin    Description                     Simplified outline                           Symbol
1      gate (g)
                                                        mb                                         d     a
2      anode (a)
3      drain (d)
4      cathode (k)                                                                      g

5      source (s)
mb     mounting base;                                                                    MBL306    s     k
       connected to drain (d)
                                                    1        5
                                                                 MBL263


                                                        SOT263B
Philips Semiconductors                                                                       BUK9907-40ATC
                                                                                                  TrenchPLUS logic level FET


5. Quick reference data
Table 2:          Quick reference data
Symbol Parameter                                        Conditions                                       Typ                Max                Unit
VDSR(CL) drain-source clamping voltage                  Tj = 25
