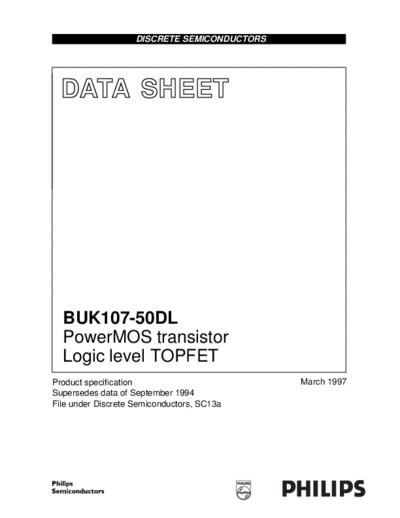

Image preview - the first page of the document



>> Download buk107_50dl_hg_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BUK107-50DL
  PowerMOS transistor
  Logic level TOPFET
Product specification                         March 1997
Supersedes data of September 1994
File under Discrete Semiconductors, SC13a
Philips Semiconductors                                                                      Product specification

  PowerMOS transistor
                                                                                            BUK107-50DL
  Logic level TOPFET

DESCRIPTION                           QUICK REFERENCE DATA
Monolithic overload protected logic   SYMBOL        PARAMETER                                      MAX.       UNIT
level power MOSFET in a surface
mount plastic envelope, intended as   VDS           Continuous drain source voltage                 50          V
a general purpose switch for
automotive systems and other          ID            Continuous drain current                       0.7          A
applications.
                                      PD            Total power dissipation                        1.8          W
APPLICATIONS
                                      Tj            Continuous junction temperature                150
