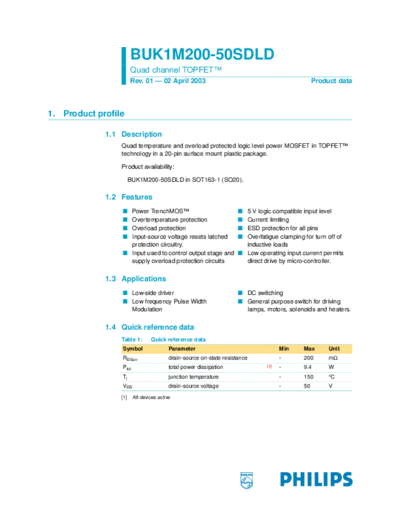

Image preview - the first page of the document



>> Download buk1m200_50sdld documenatation <<

Text preview - extract from the document

                       BUK1M200-50SDLD
                       Quad channel TOPFETTM
                       Rev. 01 -- 02 April 2003                                                  Product data



1. Product profile

             1.1 Description
                 Quad temperature and overload protected logic level power MOSFET in TOPFETTM
                 technology in a 20-pin surface mount plastic package.

                 Product availability:

                       BUK1M200-50SDLD in SOT163-1 (SO20).

             1.2 Features
                 s Power TrenchMOSTM                                 s 5 V logic compatible input level
                 s Overtemperature protection                        s Current limiting
                 s Overload protection                               s ESD protection for all pins
                 s Input-source voltage resets latched               s Overfatigue clamping for turn off of
                   protection circuitry.                               inductive loads
                 s Input used to control output stage and            s Low operating input current permits
                   supply overload protection circuits                 direct drive by micro-controller.


             1.3 Applications
                 s Low-side driver                                   s DC switching
                 s Low frequency Pulse Width                         s General purpose switch for driving
                   Modulation                                          lamps, motors, solenoids and heaters.


             1.4 Quick reference data
                 Table 1:       Quick reference data
                 Symbol                  Parameter                                   Min    Max       Unit
                 RDSon                   drain-source on-state resistance            -      200       m
                 Ptot                    total power dissipation               [1]   -      9.4       W
                 Tj                      junction temperature                        -      150
