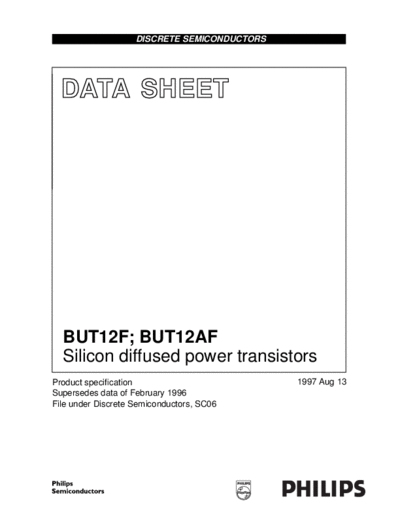

Image preview - the first page of the document



>> Download but12f_1 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BUT12F; BUT12AF
  Silicon diffused power transistors
Product specification                         1997 Aug 13
Supersedes data of February 1996
File under Discrete Semiconductors, SC06
Philips Semiconductors                                                                                          Product specification


     Silicon diffused power transistors                                                               BUT12F; BUT12AF

DESCRIPTION                                  PINNING
High-voltage, high-speed,                        PIN                                         DESCRIPTION
glass-passivated NPN power
                                                   1          base
transistor in a SOT186 plastic
package.                                           2          collector
                                                   3          emitter
APPLICATIONS                                      mb          mounting base; electrically isolated from all pins
