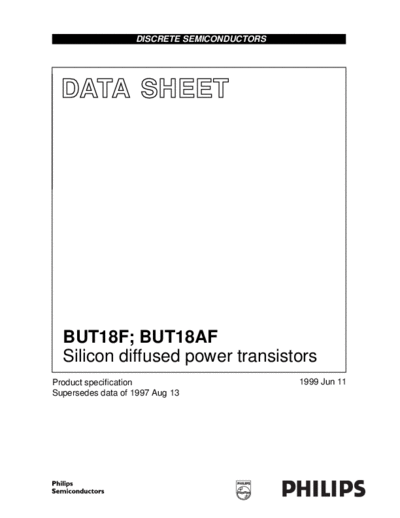

Image preview - the first page of the document



>> Download but18f_but18af_2 documenatation <<

Text preview - extract from the document

                   DISCRETE SEMICONDUCTORS




  DATA SHEET




  BUT18F; BUT18AF
  Silicon diffused power transistors
Product specification                        1999 Jun 11
Supersedes data of 1997 Aug 13
Philips Semiconductors                                                                                            Product specification


     Silicon diffused power transistors                                                            BUT18F; BUT18AF

DESCRIPTION                                PINNING
High-voltage, high-speed,                        PIN                                          DESCRIPTION
glass-passivated NPN power
                                                   1           base
transistor in a SOT186 package with
electrically isolated mounting base.               2           collector
                                                   3           emitter
APPLICATIONS                                     mb            mounting base; electrically isolated from all pins
