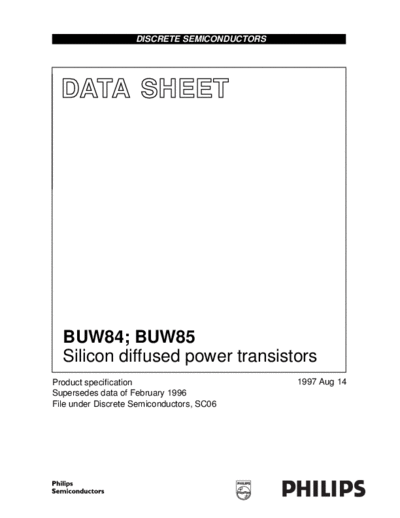

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BUW84; BUW85
  Silicon diffused power transistors
Product specification                         1997 Aug 14
Supersedes data of February 1996
File under Discrete Semiconductors, SC06
Philips Semiconductors                                                                                      Product specification


     Silicon diffused power transistors                                                              BUW84; BUW85

DESCRIPTION                                PINNING
High-voltage, high-speed,                         PIN                                     DESCRIPTION
glass-passivated NPN power
                                                   1         base
transistor in a SOT82 package.
                                                   2         collector; connected to mounting base
                                                   3         emitter
APPLICATIONS
