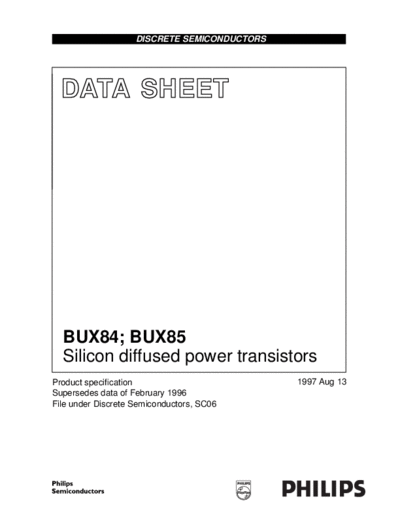

Image preview - the first page of the document



>> Download bux84_1 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BUX84; BUX85
  Silicon diffused power transistors
Product specification                         1997 Aug 13
Supersedes data of February 1996
File under Discrete Semiconductors, SC06
Philips Semiconductors                                                                                    Product specification


     Silicon diffused power transistors                                                             BUX84; BUX85

DESCRIPTION                                PINNING
High-voltage, high-speed,                       PIN                                  DESCRIPTION
glass-passivated NPN power
                                                 1       base
transistor in a TO-220AB package.
                                                 2       collector; connected to mounting base
                                                 3       emitter
APPLICATIONS
