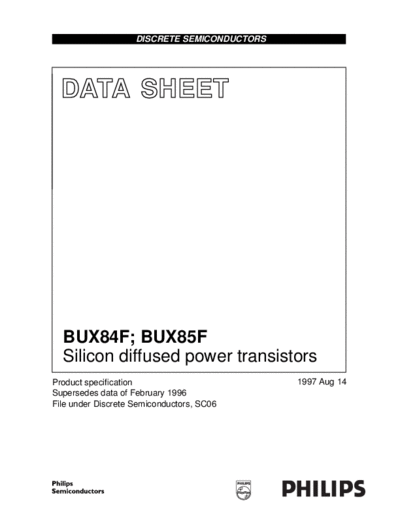

Image preview - the first page of the document
>> Download bux84f_1 documenatation <<
Text preview - extract from the document
DISCRETE SEMICONDUCTORS
DATA SHEET
BUX84F; BUX85F
Silicon diffused power transistors
Product specification 1997 Aug 14
Supersedes data of February 1996
File under Discrete Semiconductors, SC06
Philips Semiconductors Product specification
Silicon diffused power transistors BUX84F; BUX85F
DESCRIPTION PINNING
High-voltage, high-speed, PIN DESCRIPTION
glass-passivated NPN power 2
1 base
transistor in a SOT186 package with
electrically isolated mounting base. 2 collector
1
3 emitter
APPLICATIONS mb mounting base; MBB008 3
electrically isolated
