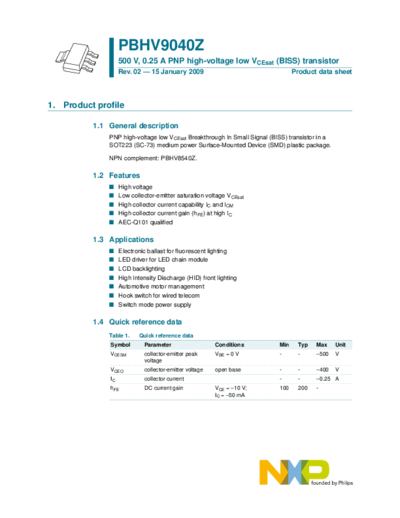

Image preview - the first page of the document



>> Download pbhv9040z documenatation <<

Text preview - extract from the document

                   PBHV9040Z
                   500 V, 0.25 A PNP high-voltage low VCEsat (BISS) transistor
                   Rev. 02 -- 15 January 2009                                   Product data sheet




1. Product profile

          1.1 General description
              PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a
              SOT223 (SC-73) medium power Surface-Mounted Device (SMD) plastic package.

              NPN complement: PBHV8540Z.

          1.2 Features
              I    High voltage
              I    Low collector-emitter saturation voltage VCEsat
              I    High collector current capability IC and ICM
              I    High collector current gain (hFE) at high IC
              I    AEC-Q101 qualified

          1.3 Applications
              I    Electronic ballast for fluorescent lighting
              I    LED driver for LED chain module
              I    LCD backlighting
              I    High Intensity Discharge (HID) front lighting
              I    Automotive motor management
              I    Hook switch for wired telecom
              I    Switch mode power supply

          1.4 Quick reference data
              Table 1.    Quick reference data
              Symbol        Parameter                   Conditions        Min    Typ   Max      Unit
              VCESM         collector-emitter peak      VBE = 0 V         -      -     -500     V
                            voltage
              VCEO          collector-emitter voltage   open base         -      -     -400     V
              IC            collector current                             -      -     -0.25 A
              hFE           DC current gain             VCE = -10 V;      100    200   -
                                                        IC = -50 mA
NXP Semiconductors                                                                                 PBHV9040Z
                                                    500 V, 0.25 A PNP high-voltage low VCEsat (BISS) transistor



2. Pinning information
                     Table 2.   Pinning
                     Pin           Description                                 Simplified outline      Graphic symbol
                     1             base
                                                                                               4                          2, 4
                     2             collector
                     3             emitter                                                                       1
                     4             collector
                                                                                      1    2       3                        3
                                                                                                                     sym028




3. Ordering information
                     Table 3.   Ordering information
                     Type number       Package
                                       Name             Description                                                  Version
                     PBHV9040Z         SC-73            plastic surface-mounted package with increased               SOT223
                                                        heatsink; 4 leads


4. Marking
                     Table 4.   Marking codes
                     Type number                                            Marking code
                     PBHV9040Z                                              V9040Z




PBHV9040Z_2
