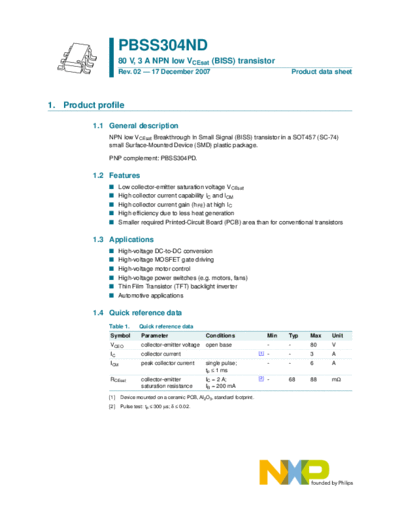

Image preview - the first page of the document



>> Download pbss304nd documenatation <<

Text preview - extract from the document

                    PBSS304ND
                    80 V, 3 A NPN low VCEsat (BISS) transistor
                    Rev. 02 -- 17 December 2007                                                   Product data sheet




1. Product profile

          1.1 General description
              NPN low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT457 (SC-74)
              small Surface-Mounted Device (SMD) plastic package.

              PNP complement: PBSS304PD.

          1.2 Features
              I     Low collector-emitter saturation voltage VCEsat
              I     High collector current capability IC and ICM
              I     High collector current gain (hFE) at high IC
              I     High efficiency due to less heat generation
              I     Smaller required Printed-Circuit Board (PCB) area than for conventional transistors

          1.3 Applications
              I     High-voltage DC-to-DC conversion
              I     High-voltage MOSFET gate driving
              I     High-voltage motor control
              I     High-voltage power switches (e.g. motors, fans)
              I     Thin Film Transistor (TFT) backlight inverter
              I     Automotive applications

          1.4 Quick reference data
              Table 1.      Quick reference data
              Symbol         Parameter                   Conditions                     Min   Typ      Max   Unit
              VCEO           collector-emitter voltage   open base                      -     -        80    V
              IC             collector current                                    [1]   -     -        3     A
              ICM            peak collector current      single pulse;                  -     -        6     A
                                                         tp  1 ms
              RCEsat         collector-emitter           IC = 2 A;                [2]   -     68       88    m
                             saturation resistance       IB = 200 mA

              [1]   Device mounted on a ceramic PCB, Al2O3, standard footprint.
              [2]   Pulse test: tp  300
