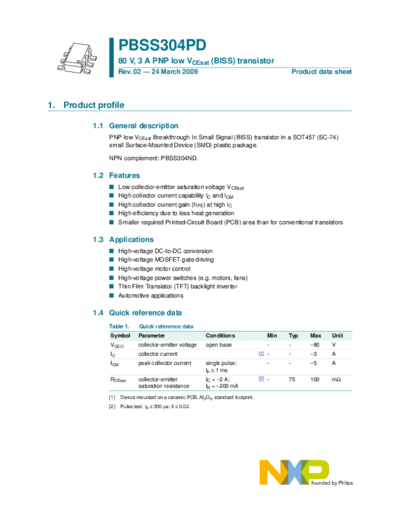

Image preview - the first page of the document



>> Download pbss304pd documenatation <<

Text preview - extract from the document

                    PBSS304PD
                    80 V, 3 A PNP low VCEsat (BISS) transistor
                    Rev. 02 -- 24 March 2009                                                      Product data sheet




1. Product profile

          1.1 General description
              PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT457 (SC-74)
              small Surface-Mounted Device (SMD) plastic package.

              NPN complement: PBSS304ND.

          1.2 Features
              I     Low collector-emitter saturation voltage VCEsat
              I     High collector current capability IC and ICM
              I     High collector current gain (hFE) at high IC
              I     High efficiency due to less heat generation
              I     Smaller required Printed-Circuit Board (PCB) area than for conventional transistors

          1.3 Applications
              I     High-voltage DC-to-DC conversion
              I     High-voltage MOSFET gate driving
              I     High-voltage motor control
              I     High-voltage power switches (e.g. motors, fans)
              I     Thin Film Transistor (TFT) backlight inverter
              I     Automotive applications

          1.4 Quick reference data
              Table 1.      Quick reference data
              Symbol       Parameter                     Conditions                     Min   Typ      Max   Unit
              VCEO         collector-emitter voltage     open base                      -     -        -80   V
              IC           collector current                                      [1]   -     -        -3    A
              ICM          peak collector current        single pulse;                  -     -        -5    A
                                                         tp  1 ms
              RCEsat       collector-emitter             IC = -2 A;               [2]   -     75       100   m
                           saturation resistance         IB = -200 mA

              [1]   Device mounted on a ceramic PCB, Al2O3, standard footprint.
              [2]   Pulse test: tp  300
