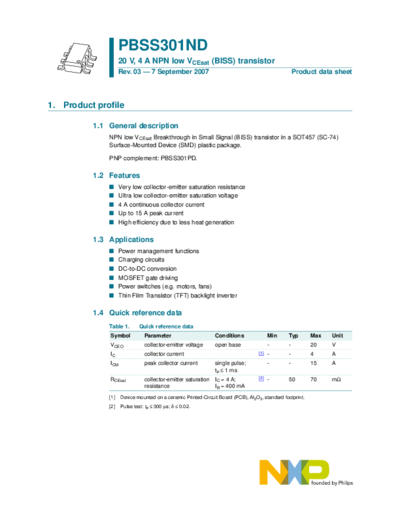

Image preview - the first page of the document



>> Download pbss301nd documenatation <<

Text preview - extract from the document

                    PBSS301ND
                    20 V, 4 A NPN low VCEsat (BISS) transistor
                    Rev. 03 -- 7 September 2007                                                    Product data sheet




1. Product profile

          1.1 General description
              NPN low VCEsat Breakthrough in Small Signal (BISS) transistor in a SOT457 (SC-74)
              Surface-Mounted Device (SMD) plastic package.

              PNP complement: PBSS301PD.

          1.2 Features
              I     Very low collector-emitter saturation resistance
              I     Ultra low collector-emitter saturation voltage
              I     4 A continuous collector current
              I     Up to 15 A peak current
              I     High efficiency due to less heat generation

          1.3 Applications
              I     Power management functions
              I     Charging circuits
              I     DC-to-DC conversion
              I     MOSFET gate driving
              I     Power switches (e.g. motors, fans)
              I     Thin Film Transistor (TFT) backlight inverter

          1.4 Quick reference data
              Table 1.      Quick reference data
              Symbol          Parameter                       Conditions                Min    Typ        Max   Unit
              VCEO            collector-emitter voltage       open base                 -      -          20    V
              IC              collector current                                   [1]   -      -          4     A
              ICM             peak collector current          single pulse;             -      -          15    A
                                                              tp  1 ms
              RCEsat          collector-emitter saturation    IC = 4 A;           [2]   -      50         70    m
                              resistance                      IB = 400 mA

              [1]   Device mounted on a ceramic Printed-Circuit Board (PCB), Al2O3, standard footprint.
              [2]   Pulse test: tp  300
