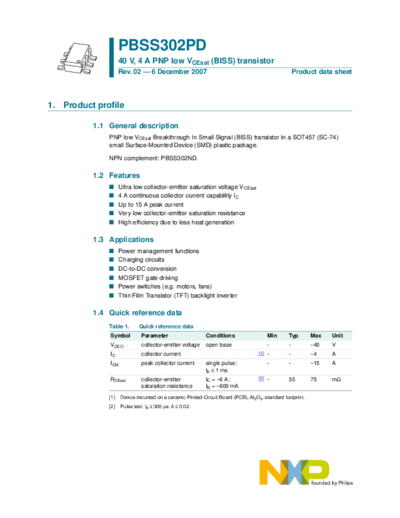

Image preview - the first page of the document



>> Download pbss302pd documenatation <<

Text preview - extract from the document

                    PBSS302PD
                    40 V, 4 A PNP low VCEsat (BISS) transistor
                    Rev. 02 -- 6 December 2007                                                     Product data sheet




1. Product profile

          1.1 General description
              PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT457 (SC-74)
              small Surface-Mounted Device (SMD) plastic package.

              NPN complement: PBSS302ND.

          1.2 Features
              I     Ultra low collector-emitter saturation voltage VCEsat
              I     4 A continuous collector current capability IC
              I     Up to 15 A peak current
              I     Very low collector-emitter saturation resistance
              I     High efficiency due to less heat generation

          1.3 Applications
              I     Power management functions
              I     Charging circuits
              I     DC-to-DC conversion
              I     MOSFET gate driving
              I     Power switches (e.g. motors, fans)
              I     Thin Film Transistor (TFT) backlight inverter

          1.4 Quick reference data
              Table 1.      Quick reference data
              Symbol         Parameter                    Conditions                    Min    Typ        Max   Unit
              VCEO           collector-emitter voltage    open base                     -      -          -40   V
              IC             collector current                                    [1]   -      -          -4    A
              ICM            peak collector current       single pulse;                 -      -          -15   A
                                                          tp  1 ms
              RCEsat         collector-emitter            IC = -6 A;              [2]   -      55         75    m
                             saturation resistance        IB = -600 mA

              [1]   Device mounted on a ceramic Printed-Circuit Board (PCB), Al2O3, standard footprint.
              [2]   Pulse test: tp  300
