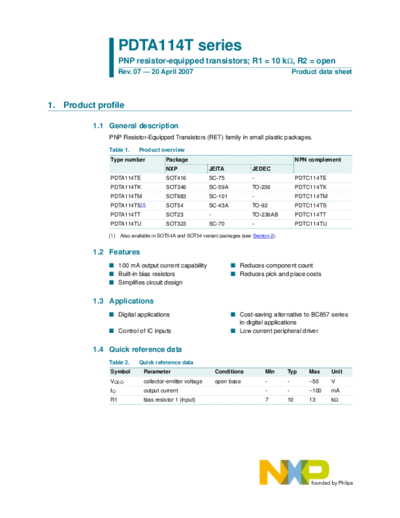

Image preview - the first page of the document
>> Download pdta114t_ser documenatation <<
Text preview - extract from the document
PDTA114T series
PNP resistor-equipped transistors; R1 = 10 k, R2 = open
Rev. 07 -- 20 April 2007 Product data sheet
1. Product profile
1.1 General description
PNP Resistor-Equipped Transistors (RET) family in small plastic packages.
Table 1. Product overview
Type number Package NPN complement
NXP JEITA JEDEC
PDTA114TE SOT416 SC-75 - PDTC114TE
PDTA114TK SOT346 SC-59A TO-236 PDTC114TK
PDTA114TM SOT883 SC-101 - PDTC114TM
PDTA114TS[1] SOT54 SC-43A TO-92 PDTC114TS
PDTA114TT SOT23 - TO-236AB PDTC114TT
PDTA114TU SOT323 SC-70 - PDTC114TU
[1] Also available in SOT54A and SOT54 variant packages (see Section 2).
1.2 Features
I 100 mA output current capability I Reduces component count
I Built-in bias resistors I Reduces pick and place costs
I Simplifies circuit design
1.3 Applications
I Digital applications I Cost-saving alternative to BC857 series
in digital applications
I Control of IC inputs I Low current peripheral driver
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - -50 V
IO output current - - -100 mA
R1 bias resistor 1 (input) 7 10 13 k
NXP Semiconductors PDTA114T series
PNP resistor-equipped transistors; R1 = 10 k, R2 = open
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
SOT54
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab347 3
006aaa217
SOT54A
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab348 3
006aaa217
SOT54 variant
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab447 3
006aaa217
SOT23; SOT323; SOT346; SOT416
1 input (base)
3 3
2 GND (emitter)
3 output (collector) R1
1
1 2 2
006aaa144
sym009
SOT883
1 input (base)
1 3
2 GND (emitter)
3
3 output (collector) 2 R1
1
Transparent
top view
2
sym009
