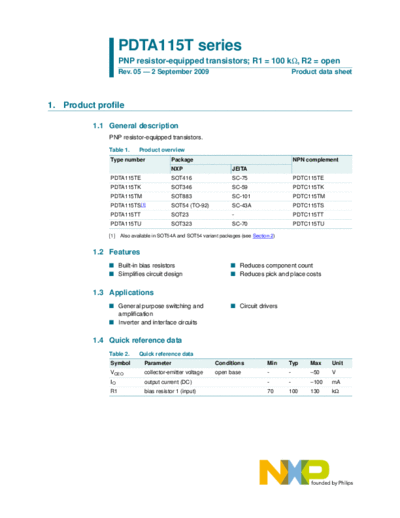

Image preview - the first page of the document
>> Download pdta115t_ser documenatation <<
Text preview - extract from the document
PDTA115T series
PNP resistor-equipped transistors; R1 = 100 k, R2 = open
Rev. 05 -- 2 September 2009 Product data sheet
1. Product profile
1.1 General description
PNP resistor-equipped transistors.
Table 1. Product overview
Type number Package NPN complement
NXP JEITA
PDTA115TE SOT416 SC-75 PDTC115TE
PDTA115TK SOT346 SC-59 PDTC115TK
PDTA115TM SOT883 SC-101 PDTC115TM
PDTA115TS[1] SOT54 (TO-92) SC-43A PDTC115TS
PDTA115TT SOT23 - PDTC115TT
PDTA115TU SOT323 SC-70 PDTC115TU
[1] Also available in SOT54A and SOT54 variant packages (see Section 2)
1.2 Features
I Built-in bias resistors I Reduces component count
I Simplifies circuit design I Reduces pick and place costs
1.3 Applications
I General purpose switching and I Circuit drivers
amplification
I Inverter and interface circuits
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - -50 V
IO output current (DC) - - -100 mA
R1 bias resistor 1 (input) 70 100 130 k
NXP Semiconductors PDTA115T series
PNP resistor-equipped transistors; R1 = 100 k, R2 = open
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
SOT54
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab347 3
006aaa217
SOT54A
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab348 3
006aaa217
SOT54 variant
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab447 3
006aaa217
SOT23, SOT323, SOT346, SOT416
1 input (base)
3 3
2 GND (emitter)
3 output (collector) R1
1
1 2 2
006aaa144
sym009
SOT883
1 input (base)
1 3
2 GND (emitter)
3
3 output (collector) 2 R1
1
Transparent
top view
2
sym009
