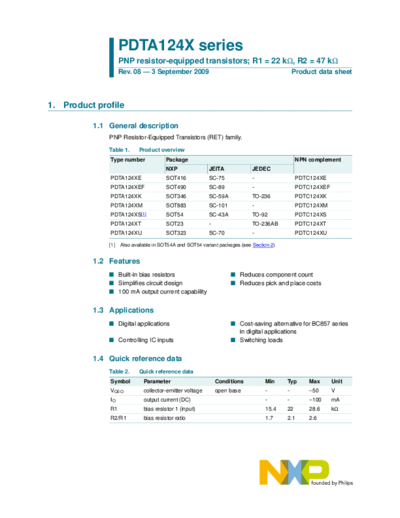

Image preview - the first page of the document
>> Download pdta124x_ser documenatation <<
Text preview - extract from the document
PDTA124X series
PNP resistor-equipped transistors; R1 = 22 k, R2 = 47 k
Rev. 08 -- 3 September 2009 Product data sheet
1. Product profile
1.1 General description
PNP Resistor-Equipped Transistors (RET) family.
Table 1. Product overview
Type number Package NPN complement
NXP JEITA JEDEC
PDTA124XE SOT416 SC-75 - PDTC124XE
PDTA124XEF SOT490 SC-89 - PDTC124XEF
PDTA124XK SOT346 SC-59A TO-236 PDTC124XK
PDTA124XM SOT883 SC-101 - PDTC124XM
PDTA124XS[1] SOT54 SC-43A TO-92 PDTC124XS
PDTA124XT SOT23 - TO-236AB PDTC124XT
PDTA124XU SOT323 SC-70 - PDTC124XU
[1] Also available in SOT54A and SOT54 variant packages (see Section 2)
1.2 Features
I Built-in bias resistors I Reduces component count
I Simplifies circuit design I Reduces pick and place costs
I 100 mA output current capability
1.3 Applications
I Digital applications I Cost-saving alternative for BC857 series
in digital applications
I Controlling IC inputs I Switching loads
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - -50 V
IO output current (DC) - - -100 mA
R1 bias resistor 1 (input) 15.4 22 28.6 k
R2/R1 bias resistor ratio 1.7 2.1 2.6
NXP Semiconductors PDTA124X series
PNP resistor-equipped transistors; R1 = 22 k, R2 = 47 k
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
SOT54
1 input (base)
2 output (collector) 2
R1
3 GND (emitter) 1 1
2
3 R2
001aab347 3
006aaa148
SOT54A
1 input (base)
2 output (collector) 2
R1
3 GND (emitter) 1 1
2
R2
3
001aab348 3
006aaa148
SOT54 variant
1 input (base)
2 output (collector) 2
R1
3 GND (emitter) 1 1
2
3 R2
001aab447 3
006aaa148
SOT23; SOT323; SOT346; SOT416; SOT490
1 input (base)
3 3
2 GND (emitter)
R1
3 output (collector) 1
R2
1 2 2
006aaa144
sym003
SOT883
1 input (base)
1 3
2 GND (emitter)
3 R1
3 output (collector) 2 1
Transparent
R2
top view
2
sym003
