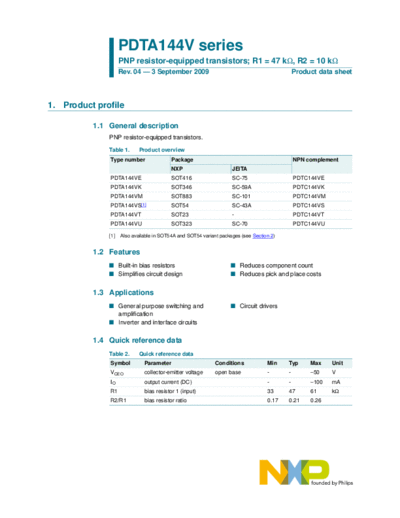

Image preview - the first page of the document
>> Download pdta144v_ser documenatation <<
Text preview - extract from the document
PDTA144V series
PNP resistor-equipped transistors; R1 = 47 k, R2 = 10 k
Rev. 04 -- 3 September 2009 Product data sheet
1. Product profile
1.1 General description
PNP resistor-equipped transistors.
Table 1. Product overview
Type number Package NPN complement
NXP JEITA
PDTA144VE SOT416 SC-75 PDTC144VE
PDTA144VK SOT346 SC-59A PDTC144VK
PDTA144VM SOT883 SC-101 PDTC144VM
PDTA144VS[1] SOT54 SC-43A PDTC144VS
PDTA144VT SOT23 - PDTC144VT
PDTA144VU SOT323 SC-70 PDTC144VU
[1] Also available in SOT54A and SOT54 variant packages (see Section 2)
1.2 Features
I Built-in bias resistors I Reduces component count
I Simplifies circuit design I Reduces pick and place costs
1.3 Applications
I General purpose switching and I Circuit drivers
amplification
I Inverter and interface circuits
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - -50 V
IO output current (DC) - - -100 mA
R1 bias resistor 1 (input) 33 47 61 k
R2/R1 bias resistor ratio 0.17 0.21 0.26
NXP Semiconductors PDTA144V series
PNP resistor-equipped transistors; R1 = 47 k, R2 = 10 k
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
SOT54
1 input (base)
2 output (collector) 2
R1
3 GND (emitter) 1 1
2
3 R2
001aab347 3
006aaa148
SOT54A
1 input (base)
2 output (collector) 2
R1
3 GND (emitter) 1 1
2
R2
3
001aab348 3
006aaa148
SOT54 variant
1 input (base)
2 output (collector) 2
R1
3 GND (emitter) 1 1
2
3 R2
001aab447 3
006aaa148
SOT23, SOT323, SOT346, SOT416
1 input (base)
3 3
2 GND (emitter)
R1
3 output (collector) 1
R2
1 2 2
006aaa144
sym003
SOT883
1 input (base)
1 3
2 GND (emitter)
3 R1
3 output (collector) 2 1
Transparent
R2
top view
2
sym003
