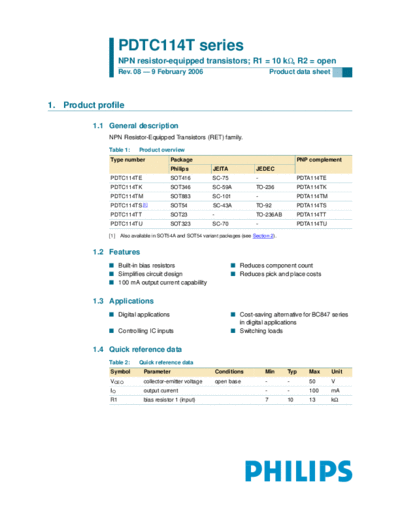

Image preview - the first page of the document
>> Download pdtc114t_ser documenatation <<
Text preview - extract from the document
PDTC114T series
NPN resistor-equipped transistors; R1 = 10 k, R2 = open
Rev. 08 -- 9 February 2006 Product data sheet
1. Product profile
1.1 General description
NPN Resistor-Equipped Transistors (RET) family.
Table 1: Product overview
Type number Package PNP complement
Philips JEITA JEDEC
PDTC114TE SOT416 SC-75 - PDTA114TE
PDTC114TK SOT346 SC-59A TO-236 PDTA114TK
PDTC114TM SOT883 SC-101 - PDTA114TM
PDTC114TS [1] SOT54 SC-43A TO-92 PDTA114TS
PDTC114TT SOT23 - TO-236AB PDTA114TT
PDTC114TU SOT323 SC-70 - PDTA114TU
[1] Also available in SOT54A and SOT54 variant packages (see Section 2).
1.2 Features
s Built-in bias resistors s Reduces component count
s Simplifies circuit design s Reduces pick and place costs
s 100 mA output current capability
1.3 Applications
s Digital applications s Cost-saving alternative for BC847 series
in digital applications
s Controlling IC inputs s Switching loads
1.4 Quick reference data
Table 2: Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - 50 V
IO output current - - 100 mA
R1 bias resistor 1 (input) 7 10 13 k
Philips Semiconductors PDTC114T series
NPN resistor-equipped transistors; R1 = 10 k, R2 = open
2. Pinning information
Table 3: Pinning
Pin Description Simplified outline Symbol
SOT54
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab347 3
006aaa218
SOT54A
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab348 3
006aaa218
SOT54 variant
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab447 3
006aaa218
SOT23; SOT323; SOT346; SOT416
1 input (base)
3
2 GND (emitter) 3
3 output (collector) R1
1
1 2
2
006aaa144
sym012
SOT883
1 input (base)
1
2 GND (emitter) 3
3
3 output (collector) 2 R1
1
Transparent
top view
2
sym012
