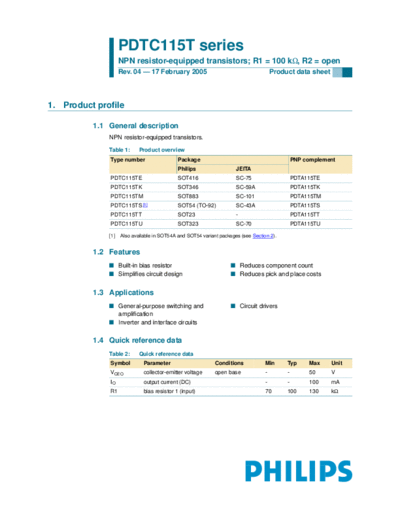

Image preview - the first page of the document
>> Download pdtc115t_ser documenatation <<
Text preview - extract from the document
PDTC115T series
NPN resistor-equipped transistors; R1 = 100 k, R2 = open
Rev. 04 -- 17 February 2005 Product data sheet
1. Product profile
1.1 General description
NPN resistor-equipped transistors.
Table 1: Product overview
Type number Package PNP complement
Philips JEITA
PDTC115TE SOT416 SC-75 PDTA115TE
PDTC115TK SOT346 SC-59A PDTA115TK
PDTC115TM SOT883 SC-101 PDTA115TM
PDTC115TS [1] SOT54 (TO-92) SC-43A PDTA115TS
PDTC115TT SOT23 - PDTA115TT
PDTC115TU SOT323 SC-70 PDTA115TU
[1] Also available in SOT54A and SOT54 variant packages (see Section 2).
1.2 Features
s Built-in bias resistor s Reduces component count
s Simplifies circuit design s Reduces pick and place costs
1.3 Applications
s General-purpose switching and s Circuit drivers
amplification
s Inverter and interface circuits
1.4 Quick reference data
Table 2: Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - 50 V
IO output current (DC) - - 100 mA
R1 bias resistor 1 (input) 70 100 130 k
Philips Semiconductors PDTC115T series
NPN resistor-equipped transistors; R1 = 100 k, R2 = open
2. Pinning information
Table 3: Pinning
Pin Description Simplified outline Symbol
SOT54
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab347 3
006aaa218
SOT54A
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab348 3
006aaa218
SOT54 variant
1 input (base)
2 output (collector) 2
3 GND (emitter) 1 R1
2 1
3
001aab447 3
006aaa218
SOT23, SOT323, SOT346, SOT416
1 input (base)
3
2 GND (emitter) 3
3 output (collector) R1
1
1 2
2
006aaa144
sym012
SOT883
1 input (base)
1
2 GND (emitter) 3
3
3 output (collector) 2 R1
1
Transparent
top view
2
sym012
