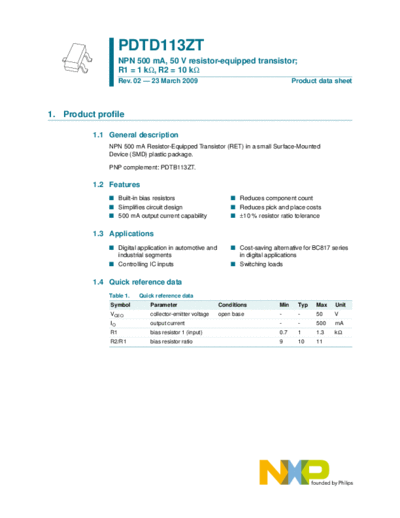

                   PDTD113ZT
                   NPN 500 mA, 50 V resistor-equipped transistor;
                   R1 = 1 k, R2 = 10 k
                   Rev. 02 -- 23 March 2009                                         Product data sheet




1. Product profile

          1.1 General description
              NPN 500 mA Resistor-Equipped Transistor (RET) in a small Surface-Mounted
              Device (SMD) plastic package.

              PNP complement: PDTB113ZT.

          1.2 Features
              I Built-in bias resistors                      I Reduces component count
              I Simplifies circuit design                    I Reduces pick and place costs
              I 500 mA output current capability             I
