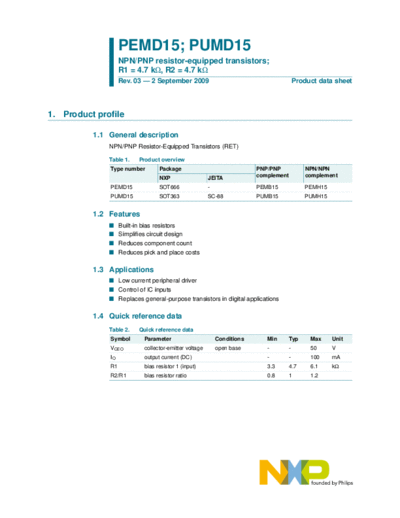

Image preview - the first page of the document
>> Download pemd15_pumd15 documenatation <<
Text preview - extract from the document
PEMD15; PUMD15
NPN/PNP resistor-equipped transistors;
R1 = 4.7 k, R2 = 4.7 k
Rev. 03 -- 2 September 2009 Product data sheet
1. Product profile
1.1 General description
NPN/PNP Resistor-Equipped Transistors (RET)
Table 1. Product overview
Type number Package PNP/PNP NPN/NPN
NXP JEITA complement complement
PEMD15 SOT666 - PEMB15 PEMH15
PUMD15 SOT363 SC-88 PUMB15 PUMH15
1.2 Features
I Built-in bias resistors
I Simplifies circuit design
I Reduces component count
I Reduces pick and place costs
1.3 Applications
I Low current peripheral driver
I Control of IC inputs
I Replaces general-purpose transistors in digital applications
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - 50 V
IO output current (DC) - - 100 mA
R1 bias resistor 1 (input) 3.3 4.7 6.1 k
R2/R1 bias resistor ratio 0.8 1 1.2
NXP Semiconductors PEMD15; PUMD15
NPN/PNP resistor-equipped transistors; R1 = 4.7 k, R2 = 4.7 k
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
1 GND (emitter) TR1
6 5 4 6 5 4
2 input (base) TR1
3 output (collector) TR2
R1 R2
4 GND (emitter) TR2
TR2
5 input (base) TR2 TR1
1 2 3
6 output (collector) TR1 001aab555 R2 R1
1 2 3
006aaa143
3. Ordering information
Table 4. Ordering information
Type number Package
Name Description Version
PEMD15 - plastic surface mounted package; 6 leads SOT666
PUMD15 SC-88 plastic surface mounted package; 6 leads SOT363
4. Marking
Table 5. Marking codes
Type number Marking code[1]
PEMD15 5E
PUMD15 D0*
[1] * = -: made in Hong Kong
* = p: made in Hong Kong
* = t: made in Malaysia
* = W: made in China
