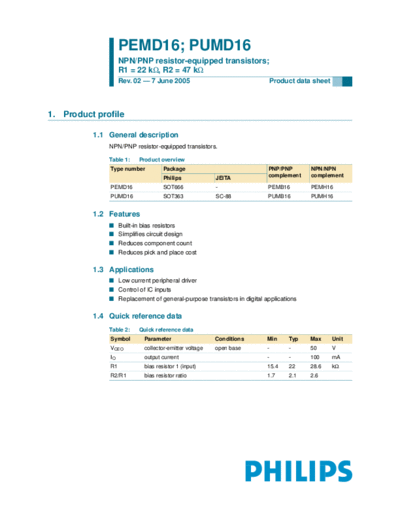

Image preview - the first page of the document
>> Download pemd16_pumd16 documenatation <<
Text preview - extract from the document
PEMD16; PUMD16
NPN/PNP resistor-equipped transistors;
R1 = 22 k, R2 = 47 k
Rev. 02 -- 7 June 2005 Product data sheet
1. Product profile
1.1 General description
NPN/PNP resistor-equipped transistors.
Table 1: Product overview
Type number Package PNP/PNP NPN/NPN
Philips JEITA complement complement
PEMD16 SOT666 - PEMB16 PEMH16
PUMD16 SOT363 SC-88 PUMB16 PUMH16
1.2 Features
s Built-in bias resistors
s Simplifies circuit design
s Reduces component count
s Reduces pick and place cost
1.3 Applications
s Low current peripheral driver
s Control of IC inputs
s Replacement of general-purpose transistors in digital applications
1.4 Quick reference data
Table 2: Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - 50 V
IO output current - - 100 mA
R1 bias resistor 1 (input) 15.4 22 28.6 k
R2/R1 bias resistor ratio 1.7 2.1 2.6
Philips Semiconductors PEMD16; PUMD16
NPN/PNP resistor-equipped transistors; R1 = 22 k, R2 = 47 k
2. Pinning information
Table 3: Pinning
Pin Description Simplified outline Symbol
1 GND (emitter) TR1
6 5 4 6 5 4
2 input (base) TR1
3 output (collector) TR2
R1 R2
4 GND (emitter) TR2
TR2
5 input (base) TR2 TR1
1 2 3
6 output (collector) TR1 001aab555 R2 R1
1 2 3
006aaa143
3. Ordering information
Table 4: Ordering information
Type number Package
Name Description Version
PEMD16 - plastic surface mounted package; 6 leads SOT666
PUMD16 SC-88 plastic surface mounted package; 6 leads SOT363
4. Marking
Table 5: Marking codes
Type number Marking code [1]
PEMD16 5H
PUMD16 D1*
[1] * = -: made in Hong Kong
* = p: made in Hong Kong
* = t: made in Malaysia
* = W: made in China
