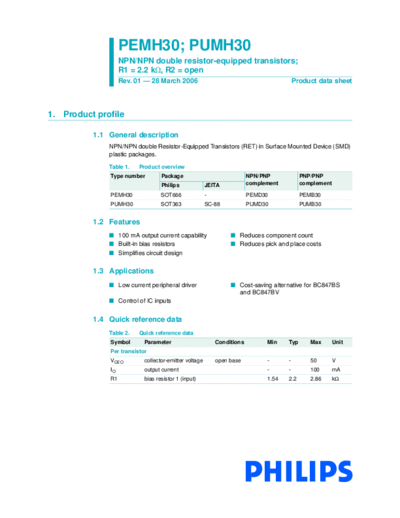

Image preview - the first page of the document
>> Download pemh30_pumh30 documenatation <<
Text preview - extract from the document
PEMH30; PUMH30
NPN/NPN double resistor-equipped transistors;
R1 = 2.2 k, R2 = open
Rev. 01 -- 28 March 2006 Product data sheet
1. Product profile
1.1 General description
NPN/NPN double Resistor-Equipped Transistors (RET) in Surface Mounted Device (SMD)
plastic packages.
Table 1. Product overview
Type number Package NPN/PNP PNP/PNP
Philips JEITA complement complement
PEMH30 SOT666 - PEMD30 PEMB30
PUMH30 SOT363 SC-88 PUMD30 PUMB30
1.2 Features
I 100 mA output current capability I Reduces component count
I Built-in bias resistors I Reduces pick and place costs
I Simplifies circuit design
1.3 Applications
I Low current peripheral driver I Cost-saving alternative for BC847BS
and BC847BV
I Control of IC inputs
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
Per transistor
VCEO collector-emitter voltage open base - - 50 V
IO output current - - 100 mA
R1 bias resistor 1 (input) 1.54 2.2 2.86 k
Philips Semiconductors PEMH30; PUMH30
NPN/NPN double resistor-equipped transistors; R1 = 2.2 k, R2 = open
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
1 GND (emitter) TR1
6 5 4 6 5 4
2 input (base) TR1
3 output (collector) TR2 R1
4 GND (emitter) TR2 TR2
TR1
5 input (base) TR2
1 2 3 R1
6 output (collector) TR1 001aab555
1 2 3
sym090
3. Ordering information
Table 4. Ordering information
Type number Package
Name Description Version
PEMH30 - plastic surface mounted package; 6 leads SOT666
PUMH30 SC-88 plastic surface mounted package; 6 leads SOT363
4. Marking
Table 5. Marking codes
Type number Marking code[1]
PEMH30 2S
PUMH30 *B1
[1] * = -: made in Hong Kong
* = p: made in Hong Kong
* = t: made in Malaysia
* = W: made in China
