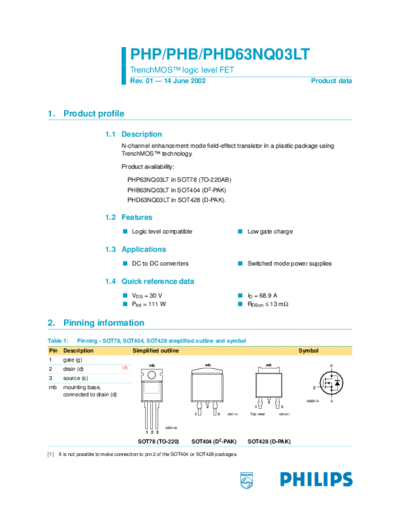

Image preview - the first page of the document



>> Download php63nq03lt_phb63nq03lt_phd63nq03lt documenatation <<

Text preview - extract from the document

                                        PHP/PHB/PHD63NQ03LT
                                        TrenchMOSTM logic level FET
                                        Rev. 01 -- 14 June 2002                                                           Product data



1. Product profile

                          1.1 Description
                                  N-channel enhancement mode field-effect transistor in a plastic package using
                                  TrenchMOSTM technology.

                                  Product availability:

                                    PHP63NQ03LT in SOT78 (TO-220AB)
                                    PHB63NQ03LT in SOT404 (D2-PAK)
                                    PHD63NQ03LT in SOT428 (D-PAK).

                          1.2 Features
                                  s Logic level compatible                                s Low gate charge


                          1.3 Applications
                                  s DC to DC converters                                   s Switched mode power supplies


                          1.4 Quick reference data
                                  s VDS = 30 V                                            s ID = 68.9 A
                                  s Ptot = 111 W                                          s RDSon  13 m


2. Pinning information
Table 1:      Pinning - SOT78, SOT404, SOT428 simplified outline and symbol
Pin Description                         Simplified outline                                                            Symbol
1      gate (g)
                                              mb                       mb                               mb                       d
2      drain (d)                  [1]

3      source (s)
mb     mounting base,                                                                                                      g
       connected to drain (d)
                                                                                                        2               MBB076   s
                                                                        2                      1              3
                                                                  1          3   MBK116      Top view        MBK091



                                                     MBK106
                                            1 2 3

                                          SOT78 (TO-220)         SOT404 (D2-PAK)             SOT428 (D-PAK)

[1]   It is not possible to make connection to pin 2 of the SOT404 or SOT428 packages.
Philips Semiconductors                                                PHP/PHB/PHD63NQ03LT
                                                                                                TrenchMOSTM logic level FET


3. Limiting values
Table 2:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                                     Conditions                                                 Min                Max                Unit
VDS              drain-source voltage (DC)           25
