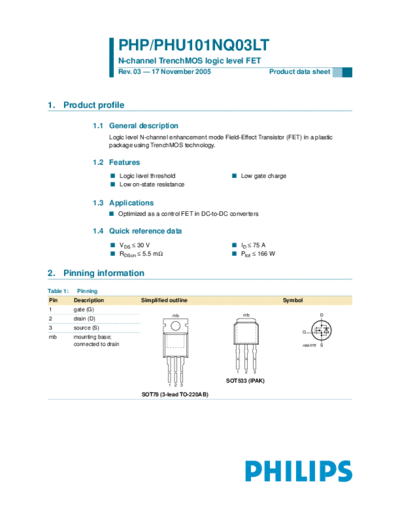

Image preview - the first page of the document



>> Download php101nq03lt_phu101nq03lt documenatation <<

Text preview - extract from the document

                            PHP/PHU101NQ03LT
                            N-channel TrenchMOS logic level FET
                            Rev. 03 -- 17 November 2005                             Product data sheet




1. Product profile

                   1.1 General description
                         Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic
                         package using TrenchMOS technology.

                   1.2 Features
                         s Logic level threshold                     s Low gate charge
                         s Low on-state resistance


                   1.3 Applications
                         s Optimized as a control FET in DC-to-DC converters

                   1.4 Quick reference data
                         s VDS  30 V                                 s ID  75 A
                         s RDSon  5.5 m                              s Ptot  166 W


2. Pinning information
Table 1:    Pinning
Pin        Description              Simplified outline                                 Symbol
1          gate (G)
                                                mb                         mb                          D
2          drain (D)
3          source (S)
                                                                                               G
mb         mounting base;
           connected to drain                                                                 mbb076   S




                                                                       1   2    3

                                                                   SOT533 (IPAK)
                                              1 2 3

                                    SOT78 (3-lead TO-220AB)
Philips Semiconductors                                                          PHP/PHU101NQ03LT
                                                                                    N-channel TrenchMOS logic level FET



3. Ordering information
Table 2:       Ordering information
Type number             Package
                        Name            Description                                                                                     Version
PHP101NQ03LT            SC-46           plastic single-ended package; heatsink mounted; 1 mounting hole;                                SOT78
                                        3-lead TO-220AB
PHU101NQ03LT            IPAK            plastic single-ended package; 3 leads (in-line)                                                 SOT533


4. Limiting values
Table 3:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                               Conditions                                                     Min                Max                Unit
VDS          drain-source voltage              25
