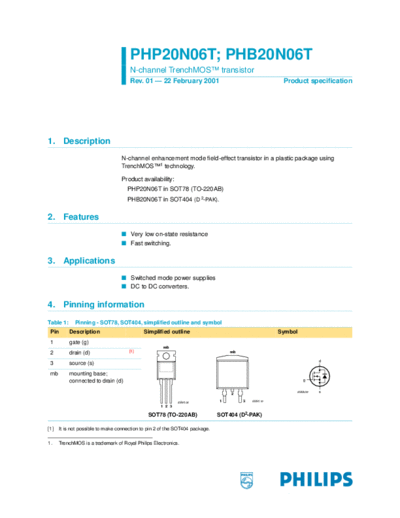

Image preview - the first page of the document



>> Download php20n06t_phb20n06t documenatation <<

Text preview - extract from the document

                                      PHP20N06T; PHB20N06T
                                      N-channel TrenchMOSTM transistor
                                      Rev. 01 -- 22 February 2001                                    Product specification




1. Description
                                  N-channel enhancement mode field-effect transistor in a plastic package using
                                  TrenchMOSTM1 technology.

                                  Product availability:
                                     PHP20N06T in SOT78 (TO-220AB)
                                     PHB20N06T in SOT404 (D 2-PAK).


2. Features
                                  s Very low on-state resistance
                                  s Fast switching.


3. Applications
                                  s Switched mode power supplies
                                  s DC to DC converters.
                            c




4. Pinning information
                        c




Table 1:     Pinning - SOT78, SOT404, simplified outline and symbol
 Pin       Description                      Simplified outline                                      Symbol
 1         gate (g)
                                                     mb
 2         drain (d)                  [1]                                         mb

                                                                                                                  d
 3         source (s)
 mb        mounting base;
           connected to drain (d)                                                                            g


                                                                                                         MBB076   s
                                                                                  2

                                                            MBK106            1        3   MBK116
                                                    1 2 3

                                              SOT78 (TO-220AB)                SOT404 (D2-PAK)

[1]   It is not possible to make connection to pin 2 of the SOT404 package.

1.    TrenchMOS is a trademark of Royal Philips Electronics.
Philips Semiconductors                                                PHP20N06T; PHB20N06T
                                                                                       N-channel TrenchMOSTM transistor


5. Quick reference data
Table 2:         Quick reference data
Symbol Parameter                                     Conditions                                Typ                Max                Unit
VDS              drain-source voltage (DC)           Tj = 25 to 175   oC                       -                  55                 V
ID               drain current (DC)                  Tmb = 25
