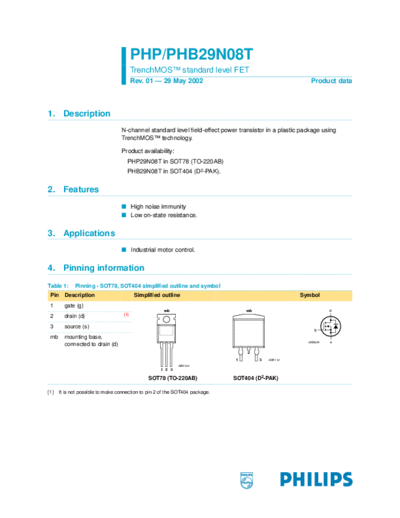

Image preview - the first page of the document



>> Download php29n08t_phb29n08t-01 documenatation <<

Text preview - extract from the document

                                         PHP/PHB29N08T
                                         TrenchMOSTM standard level FET
                                         Rev. 01 -- 29 May 2002                                          Product data



1. Description
                                  N-channel standard level field-effect power transistor in a plastic package using
                                  TrenchMOSTM technology.

                                  Product availability:
                                     PHP29N08T in SOT78 (TO-220AB)
                                     PHB29N08T in SOT404 (D2-PAK).


2. Features
                                  s High noise immunity
                                  s Low on-state resistance.


3. Applications
                                  s Industrial motor control.


4. Pinning information
Table 1:     Pinning - SOT78, SOT404 simplified outline and symbol
 Pin Description                          Simplified outline                                         Symbol
 1      gate (g)
                                                     mb                           mb                             d
 2      drain (d)                  [1]

 3      source (s)
                                                                                                           g

 mb     mounting base,
                                                                                                        MBB076   s
        connected to drain (d)
                                                                                  2
                                                                              1        3   MBK116
                                                            MBK106
                                                    1 2 3

                                               SOT78 (TO-220AB)               SOT404 (D2-PAK)

[1]   It is not possible to make connection to pin 2 of the SOT404 package.
Philips Semiconductors                                                                    PHP/PHB29N08T
                                                                                          TrenchMOSTM standard level FET


5. Quick reference data
Table 2:         Quick reference data
Symbol Parameter                                     Conditions                                                 Typ                Max                Unit
VDS              drain-source voltage (DC)           25
