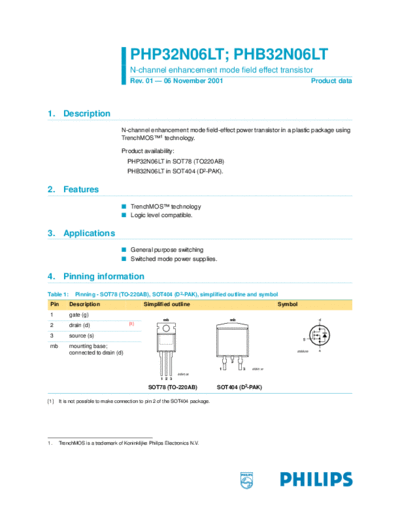

Image preview - the first page of the document
>> Download php32n06lt_phb32n06lt documenatation <<
Text preview - extract from the document
PHP32N06LT; PHB32N06LT
N-channel enhancement mode field effect transistor
Rev. 01 -- 06 November 2001 Product data
1. Description
N-channel enhancement mode field-effect power transistor in a plastic package using
TrenchMOSTM1 technology.
Product availability:
PHP32N06LT in SOT78 (TO220AB)
PHB32N06LT in SOT404 (D2-PAK).
2. Features
s TrenchMOSTM technology
s Logic level compatible.
3. Applications
s General purpose switching
s Switched mode power supplies.
4. Pinning information
Table 1: Pinning - SOT78 (TO-220AB), SOT404 (D2-PAK), simplified outline and symbol
Pin Description Simplified outline Symbol
1 gate (g)
mb mb d
2 drain (d) [1]
3 source (s)
g
mb mounting base;
MBB076 s
connected to drain (d)
2
1 3 MBK116
MBK106
1 2 3
SOT78 (TO-220AB) SOT404 (D2-PAK)
[1] It is not possible to make connection to pin 2 of the SOT404 package.
1. TrenchMOS is a trademark of Koninklijke Philips Electronics N.V.
Philips Semiconductors PHP32N06LT; PHB32N06LT
N-channel enhancement mode field effect transistor
5. Quick reference data
Table 2: Quick reference data
Symbol Parameter Conditions Typ Max Unit
VDS drain-source voltage (DC) - 60 V
ID drain current (DC) Tmb = 25 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
