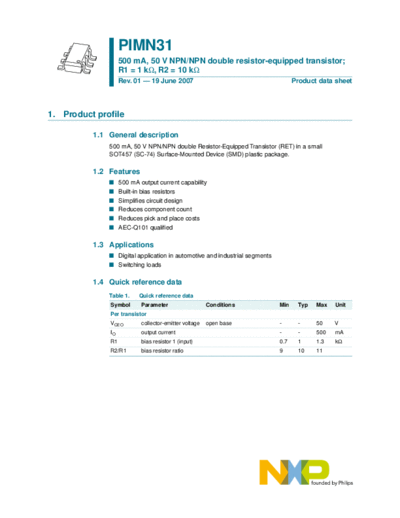

Image preview - the first page of the document



>> Download pimn31 documenatation <<

Text preview - extract from the document

                   PIMN31
                   500 mA, 50 V NPN/NPN double resistor-equipped transistor;
                   R1 = 1 k, R2 = 10 k
                   Rev. 01 -- 19 June 2007                                        Product data sheet




1. Product profile

          1.1 General description
              500 mA, 50 V NPN/NPN double Resistor-Equipped Transistor (RET) in a small
              SOT457 (SC-74) Surface-Mounted Device (SMD) plastic package.

          1.2 Features
              I    500 mA output current capability
              I    Built-in bias resistors
              I    Simplifies circuit design
              I    Reduces component count
              I    Reduces pick and place costs
              I    AEC-Q101 qualified

          1.3 Applications
              I Digital application in automotive and industrial segments
              I Switching loads

          1.4 Quick reference data
              Table 1.    Quick reference data
              Symbol       Parameter                   Conditions           Min    Typ   Max   Unit
              Per transistor
              VCEO         collector-emitter voltage   open base            -      -     50    V
              IO           output current                                   -      -     500   mA
              R1           bias resistor 1 (input)                          0.7    1     1.3   k
              R2/R1        bias resistor ratio                              9      10    11
NXP Semiconductors                                                                                            PIMN31
                                                      500 mA, 50 V NPN/NPN double RET; R1 = 1 k, R2 = 10 k



2. Pinning information
                     Table 2.   Pinning
                     Pin              Description                                Simplified outline     Symbol
                     1                GND (emitter) TR1
                                                                                        6   5     4           6        5              4
                     2                input (base) TR1
                     3                output (collector) TR2
                                                                                                                  R1         R2
                     4                GND (emitter) TR2                                 1   2     3
                                                                                                                                   TR2
                     5                input (base) TR2                                                     TR1

                     6                output (collector) TR1                                                       R2            R1




                                                                                                              1              2        3
                                                                                                                                 sym063




3. Ordering information
                     Table 3.   Ordering information
                     Type number       Package
                                       Name          Description                                                           Version
                     PIMN31            SC-74         plastic surface-mounted package (TSOP6); 6 leads                      SOT457


4. Marking
                     Table 4.   Marking codes
                     Type number                                            Marking code
                     PIMN31                                                 4E


5. Limiting values
                     Table 5.   Limiting values
                     In accordance with the Absolute Maximum Rating System (IEC 60134).
                     Symbol       Parameter                        Conditions                     Min     Max                Unit
                     Per transistor
                     VCBO         collector-base voltage           open emitter                   -       50                 V
                     VCEO         collector-emitter voltage        open base                      -       50                 V
                     VEBO         emitter-base voltage             open collector                 -       5                  V
                     VI           input voltage
                                       positive                                                   -       +12                V
                                       negative                                                   -       -5                 V
                     IO           output current                                                  -       500                mA
                     Ptot         total power dissipation          Tamb  25
