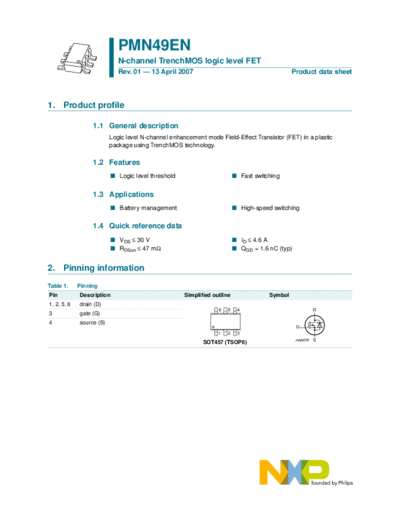

Image preview - the first page of the document



>> Download pmn49en documenatation <<

Text preview - extract from the document

                             PMN49EN
                             N-channel TrenchMOS logic level FET
                             Rev. 01 -- 13 April 2007                                          Product data sheet




1. Product profile

                  1.1 General description
                          Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic
                          package using TrenchMOS technology.

                  1.2 Features
                           I Logic level threshold                        I Fast switching


                  1.3 Applications
                           I Battery management                           I High-speed switching


                  1.4 Quick reference data
                           I VDS  30 V                                    I ID  4.6 A
                           I RDSon  47 m                                  I QGD = 1.6 nC (typ)


2. Pinning information
Table 1.     Pinning
Pin          Description                             Simplified outline               Symbol
1, 2, 5, 6   drain (D)
                                                                  6   5    4                              D
3            gate (G)
4            source (S)
                                                                                                 G
                                                                  1   2    3
                                                                                                 mbb076   S
                                                            SOT457 (TSOP6)
NXP Semiconductors                                                                                PMN49EN
                                                                                N-channel TrenchMOS logic level FET



3. Ordering information
Table 2.     Ordering information
Type number            Package
                       Name           Description                                                                  Version
PMN49EN                SC-74          plastic surface-mounted package (TSOP6); 6 leads                             SOT457


4. Limiting values
Table 3.   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                            Conditions                                        Min           Max               Unit
VDS         drain-source voltage            25
