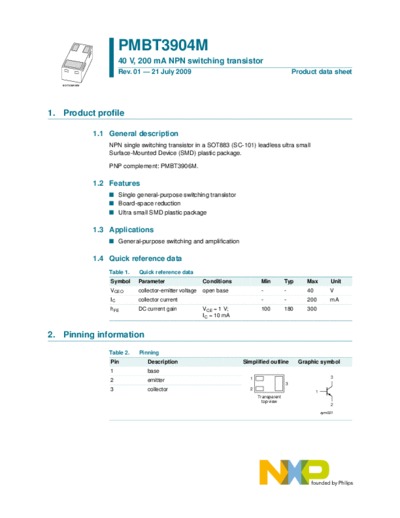

Image preview - the first page of the document



>> Download pmbt3904m documenatation <<

Text preview - extract from the document

                          PMBT3904M
                          40 V, 200 mA NPN switching transistor
                          Rev. 01 -- 21 July 2009                                                 Product data sheet
   BOTTOM VIEW




1. Product profile

                 1.1 General description
                     NPN single switching transistor in a SOT883 (SC-101) leadless ultra small
                     Surface-Mounted Device (SMD) plastic package.

                     PNP complement: PMBT3906M.

                 1.2 Features
                     I Single general-purpose switching transistor
                     I Board-space reduction
                     I Ultra small SMD plastic package

                 1.3 Applications
                     I General-purpose switching and amplification

                 1.4 Quick reference data
                     Table 1.   Quick reference data
                     Symbol     Parameter                   Conditions           Min          Typ      Max          Unit
                     VCEO       collector-emitter voltage   open base            -            -        40           V
                     IC         collector current                                -            -        200          mA
                     hFE        DC current gain             VCE = 1 V;           100          180      300
                                                            IC = 10 mA


2. Pinning information
                     Table 2.   Pinning
                     Pin           Description                           Simplified outline         Graphic symbol
                     1             base
                                                                            1                                       3
                     2             emitter
                                                                                              3
                     3             collector                                2
                                                                                                            1
                                                                                Transparent
                                                                                  top view
                                                                                                                    2
                                                                                                                sym021
NXP Semiconductors                                                                                    PMBT3904M
                                                                                    40 V, 200 mA NPN switching transistor



3. Ordering information
                     Table 3.       Ordering information
                     Type number                Package
                                                Name          Description                                                     Version
                     PMBT3904M                  SC-101        leadless ultra small plastic package; 3 solder lands;           SOT883
                                                              body 1.0
