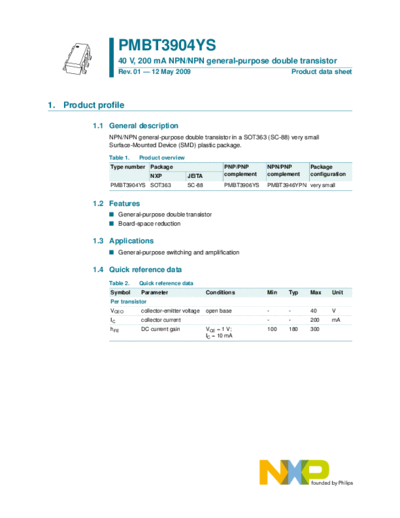

Image preview - the first page of the document



>> Download pmbt3904ys documenatation <<

Text preview - extract from the document

                   PMBT3904YS
                   40 V, 200 mA NPN/NPN general-purpose double transistor
                   Rev. 01 -- 12 May 2009                                          Product data sheet




1. Product profile

          1.1 General description
              NPN/NPN general-purpose double transistor in a SOT363 (SC-88) very small
              Surface-Mounted Device (SMD) plastic package.

              Table 1.   Product overview
              Type number      Package                      PNP/PNP      NPN/PNP        Package
                               NXP            JEITA         complement   complement     configuration

              PMBT3904YS SOT363               SC-88         PMBT3906YS   PMBT3946YPN very small


          1.2 Features
              I General-purpose double transistor
              I Board-space reduction

          1.3 Applications
              I General-purpose switching and amplification

          1.4 Quick reference data
              Table 2.   Quick reference data
              Symbol      Parameter                   Conditions         Min   Typ      Max    Unit
              Per transistor
              VCEO        collector-emitter voltage   open base          -     -        40     V
              IC          collector current                              -     -        200    mA
              hFE         DC current gain             VCE = 1 V;         100   180      300
                                                      IC = 10 mA
NXP Semiconductors                                                                           PMBT3904YS
                                                        40 V, 200 mA NPN/NPN general-purpose double transistor



2. Pinning information
                     Table 3.     Pinning
                     Pin              Description                                Simplified outline   Graphic symbol
                     1                emitter TR1
                                                                                        6   5    4             6      5      4
                     2                base TR1
                     3                collector TR2
                                                                                                                               TR2
                     4                emitter TR2                                                         TR1

                     5                base TR2                                          1   2    3
                                                                                                               1      2      3
                     6                collector TR1
                                                                                                                   sym020




3. Ordering information
                     Table 4.     Ordering information
                     Type number       Package
                                       Name           Description                                                   Version
                     PMBT3904YS SC-88                 plastic surface-mounted package; 6 leads                      SOT363


4. Marking
                     Table 5.     Marking codes
                     Type number                                           Marking code[1]
                     PMBT3904YS                                            BC*

                     [1]   * = -: made in Hong Kong
                           * = p: made in Hong Kong
                           * = t: made in Malaysia
                           * = W: made in China




PMBT3904YS_1
