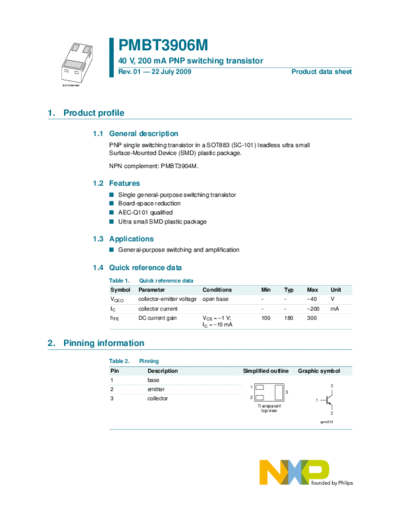

Image preview - the first page of the document



>> Download pmbt3906m documenatation <<

Text preview - extract from the document

                          PMBT3906M
                          40 V, 200 mA PNP switching transistor
                          Rev. 01 -- 22 July 2009                                                   Product data sheet
   BOTTOM VIEW




1. Product profile

                 1.1 General description
                     PNP single switching transistor in a SOT883 (SC-101) leadless ultra small
                     Surface-Mounted Device (SMD) plastic package.

                     NPN complement: PMBT3904M.

                 1.2 Features
                     I    Single general-purpose switching transistor
                     I    Board-space reduction
                     I    AEC-Q101 qualified
                     I    Ultra small SMD plastic package

                 1.3 Applications
                     I General-purpose switching and amplification

                 1.4 Quick reference data
                     Table 1.    Quick reference data
                     Symbol      Parameter                   Conditions            Min          Typ      Max        Unit
                     VCEO        collector-emitter voltage   open base             -            -        -40        V
                     IC          collector current                                 -            -        -200       mA
                     hFE         DC current gain             VCE = -1 V;           100          180      300
                                                             IC = -10 mA


2. Pinning information
                     Table 2.    Pinning
                     Pin            Description                            Simplified outline         Graphic symbol
                     1              base
                                                                              1                                     3
                     2              emitter
                                                                                                3
                     3              collector                                 2
                                                                                                           1
                                                                                  Transparent
                                                                                    top view
                                                                                                                    2
                                                                                                                sym013
NXP Semiconductors                                                                                    PMBT3906M
                                                                                    40 V, 200 mA PNP switching transistor



3. Ordering information
                     Table 3.       Ordering information
                     Type number                Package
                                                Name          Description                                                     Version
                     PMBT3906M                  SC-101        leadless ultra small plastic package; 3 solder lands;           SOT883
                                                              body 1.0
