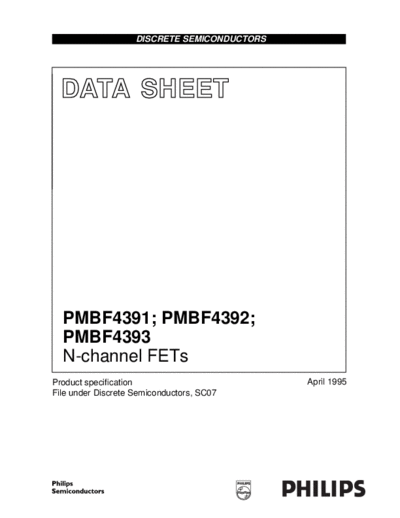

Image preview - the first page of the document



>> Download pmbf4391_pmbf4392_pmbf4393_cnv_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  PMBF4391; PMBF4392;
  PMBF4393
  N-channel FETs
Product specification                         April 1995
File under Discrete Semiconductors, SC07
Philips Semiconductors                                                                        Product specification

                                                                                         PMBF4391;
    N-channel FETs
                                                                                PMBF4392; PMBF4393

DESCRIPTION
Symmetrical silicon n-channel
depletion type junction field-effect
transistors on a plastic
microminiature envelope intended for
application in thick and thin-film
circuits. The transistors are intended      handbook, halfpage        3
for low-power chopper or switching
applications in industry.                                                                     d
                                                                                    g
                                                                                              s

PINNING                                                    1               2

1    = drain                                              Top view                  MAM385

2    = source
3    = gate

Note
1. Drain and source are                              Fig.1 Simplified outline and symbol, SOT23.
   interchangeable.

Marking code
PMBF4391 = p6J
PMBF4392 = p6K
PMBF4393 = p6G


QUICK REFERENCE DATA

                                                                   PMBF4391       PMBF4392          PMBF4393
Drain-source voltage
