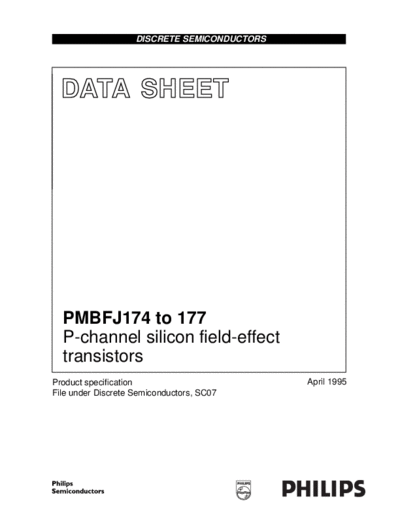

Image preview - the first page of the document



>> Download pmbfj174_pmbfj175_pmbfj176_pmbfj177_cnv_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  PMBFJ174 to 177
  P-channel silicon field-effect
  transistors
Product specification                         April 1995
File under Discrete Semiconductors, SC07
Philips Semiconductors                                                                            Product specification


  P-channel silicon field-effect transistors                                           PMBFJ174 to 177

DESCRIPTION
Silicon symmetrical p-channel
junction FETs in plastic
microminiature SOT23
envelopes.They are intended for
application with analogue switches,
choppers, commutators etc. using
SMD technology. A special feature is
the interchangeability of the drain and   handbook, halfpage             3
source connections.
                                                                                                  d
                                                                                       g
                                                                                                  s
PINNING
                                                          1                  2
1 = drain
                                                          Top view                     MAM386
2 = source
3 = gate
Note
1. Drain and source are
   interchangeable.
                                                  Fig.1 Simplified outline and symbol, SOT23.
Marking codes:
174    : p6X
175    : p6W
176    : p6S
177    : p6Y


QUICK REFERENCE DATA
Drain-source voltage
