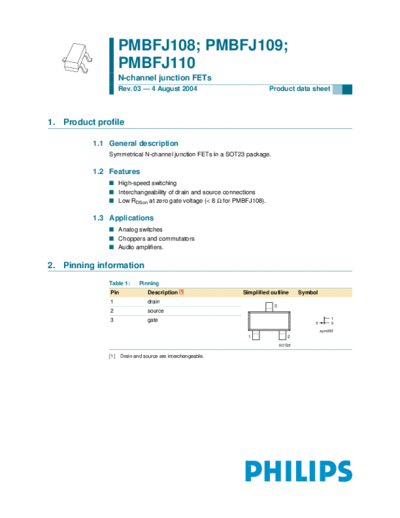

Image preview - the first page of the document



>> Download pmbfj108_pmbfj109_pmbfj110 documenatation <<

Text preview - extract from the document

                    PMBFJ108; PMBFJ109;
                    PMBFJ110
                    N-channel junction FETs
                    Rev. 03 -- 4 August 2004                          Product data sheet




1. Product profile

          1.1 General description
              Symmetrical N-channel junction FETs in a SOT23 package.

          1.2 Features
              s High-speed switching
              s Interchangeability of drain and source connections
              s Low RDSon at zero gate voltage (< 8  for PMBFJ108).

          1.3 Applications
              s Analog switches
              s Choppers and commutators
              s Audio amplifiers.


2. Pinning information
              Table 1:      Pinning
              Pin              Description [1]              Simplified outline      Symbol
              1                drain
                                                                        3
              2                source
                                                                                                  1
              3                gate                                                      3        2

                                                                                             sym053
                                                              1                2
                                                                            SOT23


              [1]   Drain and source are interchangeable.
Philips Semiconductors                   PMBFJ108; PMBFJ109; PMBFJ110
                                                                                                     N-channel junction FETs



3. Ordering information
                     Table 2:       Ordering information
                     Type number          Package
                                          Name         Description                                                                         Version
                     PMBFJ108             -            plastic surface mounted package; 3 leads                                            SOT23
                     PMBFJ109
                     PMBFJ110


4. Marking
                     Table 3:       Marking
                     Type number                                         Marking code [1]
                     PMBFJ108                                            38*
                     PMBFJ109                                            39*
                     PMBFJ110                                            40*

                     [1]    * = p: Made in Hong Kong
                            * = t: Made in Malaysia
                            * = W: Made in China


5. Limiting values
                     Table 4:   Limiting values
                     In accordance with the Absolute Maximum Rating System (IEC 60134).
                     Symbol          Parameter                           Conditions                         Min             Max              Unit
                     VDS             drain-source voltage (DC)                                              -
