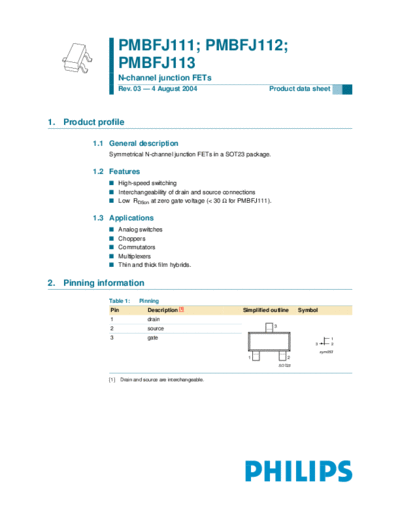

Image preview - the first page of the document



>> Download pmbfj111_pmbfj112_pmbfj113 documenatation <<

Text preview - extract from the document

                    PMBFJ111; PMBFJ112;
                    PMBFJ113
                    N-channel junction FETs
                    Rev. 03 -- 4 August 2004                          Product data sheet




1. Product profile

          1.1 General description
              Symmetrical N-channel junction FETs in a SOT23 package.

          1.2 Features
              s High-speed switching
              s Interchangeability of drain and source connections
              s Low RDSon at zero gate voltage (< 30  for PMBFJ111).

          1.3 Applications
              s     Analog switches
              s     Choppers
              s     Commutators
              s     Multiplexers
              s     Thin and thick film hybrids.


2. Pinning information
              Table 1:      Pinning
              Pin              Description [1]              Simplified outline      Symbol
              1                drain
                                                                        3
              2                source
              3                gate                                                               1
                                                                                         3        2

                                                                                             sym053
                                                              1                2
                                                                            SOT23


              [1]   Drain and source are interchangeable.
Philips Semiconductors                   PMBFJ111; PMBFJ112; PMBFJ113
                                                                                                     N-channel junction FETs



3. Ordering information
                     Table 2:       Ordering information
                     Type number          Package
                                          Name         Description                                                                         Version
                     PMBFJ111             -            plastic surface mounted package; 3 leads                                            SOT23
                     PMBFJ112
                     PMBFJ113


4. Marking
                     Table 3:       Marking
                     Type number                                         Marking code [1]
                     PMBFJ111                                            41*
                     PMBFJ112                                            42*
                     PMBFJ113                                            47*

                     [1]    * = p: Made in Hong Kong
                            * = t: Made in Malaysia
                            * = W: Made in China


5. Limiting values
                     Table 4:   Limiting values
                     In accordance with the Absolute Maximum Rating System (IEC 60134).
                     Symbol           Parameter                        Conditions                    Min                Max                Unit
                     VDS              drain-source voltage (DC)                                      -
