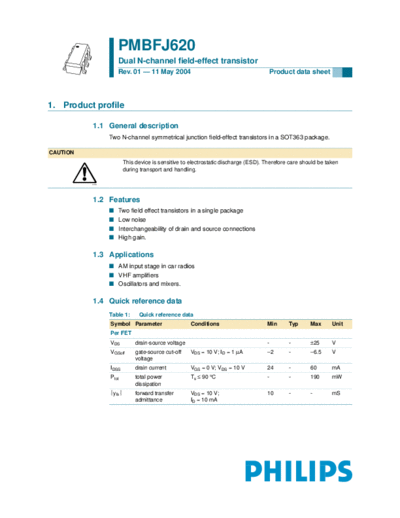

Image preview - the first page of the document



>> Download pmbfj620 documenatation <<

Text preview - extract from the document

                       PMBFJ620
                       Dual N-channel field-effect transistor
                       Rev. 01 -- 11 May 2004                                            Product data sheet




1. Product profile

          1.1 General description
                   Two N-channel symmetrical junction field-effect transistors in a SOT363 package.

CAUTION
                          This device is sensitive to electrostatic discharge (ESD). Therefore care should be taken
                          during transport and handling.

          MSC895




          1.2 Features
                   s   Two field effect transistors in a single package
                   s   Low noise
                   s   Interchangeability of drain and source connections
                   s   High gain.

          1.3 Applications
                   s AM input stage in car radios
                   s VHF amplifiers
                   s Oscillators and mixers.

          1.4 Quick reference data
                   Table 1:     Quick reference data
                   Symbol Parameter                   Conditions                     Min      Typ      Max      Unit
                   Per FET
                   VDS         drain-source voltage                                  -        -
