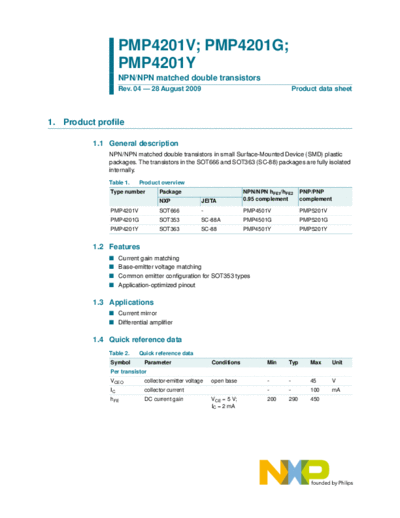

Image preview - the first page of the document
>> Download pmp4201v_g_y documenatation <<
Text preview - extract from the document
PMP4201V; PMP4201G;
PMP4201Y
NPN/NPN matched double transistors
Rev. 04 -- 28 August 2009 Product data sheet
1. Product profile
1.1 General description
NPN/NPN matched double transistors in small Surface-Mounted Device (SMD) plastic
packages. The transistors in the SOT666 and SOT363 (SC-88) packages are fully isolated
internally.
Table 1. Product overview
Type number Package NPN/NPN hFE1/hFE2 PNP/PNP
NXP JEITA 0.95 complement complement
PMP4201V SOT666 - PMP4501V PMP5201V
PMP4201G SOT353 SC-88A PMP4501G PMP5201G
PMP4201Y SOT363 SC-88 PMP4501Y PMP5201Y
1.2 Features
I Current gain matching
I Base-emitter voltage matching
I Common emitter configuration for SOT353 types
I Application-optimized pinout
1.3 Applications
I Current mirror
I Differential amplifier
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
Per transistor
VCEO collector-emitter voltage open base - - 45 V
IC collector current - - 100 mA
hFE DC current gain VCE = 5 V; 200 290 450
IC = 2 mA
NXP Semiconductors PMP4201V; PMP4201G; PMP4201Y
NPN/NPN matched double transistors
Table 2. Quick reference data ...continued
Symbol Parameter Conditions Min Typ Max Unit
Per device
hFE1/hFE2 hFE matching VCE = 5 V; [1] 0.98 1 -
IC = 2 mA
VBE1-VBE2 VBE matching VCE = 5 V; [2] - - 2 mV
IC = 2 mA
[1] The smaller of the two values is taken as the numerator.
[2] The smaller of the two values is subtracted from the larger value.
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
SOT666; SOT363
1 base TR1
6 5 4 6 5 4
2 base TR2
TR1
3 collector TR2 TR2
4 emitter TR2
5 emitter TR1 1 2 3
1 2 3 006aaa548
6 collector TR1 001aab555
SOT353
1 base TR1
5 4 5 4
2 emitter TR1, TR2
3 base TR2
TR1 TR2
4 collector TR2
5 collector TR1 1 2 3
1 2 3
006aaa549
3. Ordering information
Table 4. Ordering information
Type number Package
Name Description Version
PMP4201V - plastic surface-mounted package; 6 leads SOT666
PMP4201G SC-88A plastic surface-mounted package; 5 leads SOT353
PMP4201Y SC-88 plastic surface-mounted package; 6 leads SOT363
