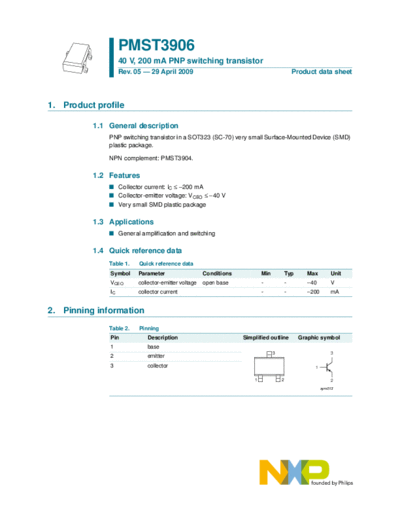

Image preview - the first page of the document



>> Download pmst3906 documenatation <<

Text preview - extract from the document

                   PMST3906
                   40 V, 200 mA PNP switching transistor
                   Rev. 05 -- 29 April 2009                                                 Product data sheet




1. Product profile

          1.1 General description
              PNP switching transistor in a SOT323 (SC-70) very small Surface-Mounted Device (SMD)
              plastic package.

              NPN complement: PMST3904.

          1.2 Features
              I Collector current: IC  -200 mA
              I Collector-emitter voltage: VCEO  -40 V
              I Very small SMD plastic package

          1.3 Applications
              I General amplification and switching

          1.4 Quick reference data
              Table 1.   Quick reference data
              Symbol     Parameter                   Conditions           Min           Typ      Max        Unit
              VCEO       collector-emitter voltage   open base            -             -        -40        V
              IC         collector current                                -             -        -200       mA


2. Pinning information
              Table 2.   Pinning
              Pin           Description                           Simplified outline          Graphic symbol
              1             base
                                                                                3                           3
              2             emitter
              3             collector                                                              1

                                                                      1             2                       2
                                                                                                        sym013
NXP Semiconductors                                                                                         PMST3906
                                                                                  40 V, 200 mA PNP switching transistor



3. Ordering information
                     Table 3.       Ordering information
                     Type number                Package
                                                Name         Description                                                        Version
                     PMST3906                   SC-70        plastic surface-mounted package; 3 leads                           SOT323


4. Marking
                     Table 4.       Marking codes
                     Type number                                              Marking code[1]
                     PMST3906                                                 *2A

                     [1]    * = -: made in Hong Kong
                            * = p: made in Hong Kong
                            * = t: made in Malaysia
                            * = W: made in China


5. Limiting values
                     Table 5.   Limiting values
                     In accordance with the Absolute Maximum Rating System (IEC 60134).
                     Symbol        Parameter                                  Conditions             Min        Max               Unit
                     VCBO          collector-base voltage                     open emitter           -          -40               V
                     VCEO          collector-emitter voltage                  open base              -          -40               V
                     VEBO          emitter-base voltage                       open collector         -          -6                V
                     IC            collector current                                                 -          -200              mA
                     ICM           peak collector current                     single pulse;          -          -200              mA
                                                                              tp  1 ms
                     IBM           peak base current                          single pulse;          -          -100              mA
                                                                              tp  1 ms
                     Ptot          total power dissipation                    Tamb  25
