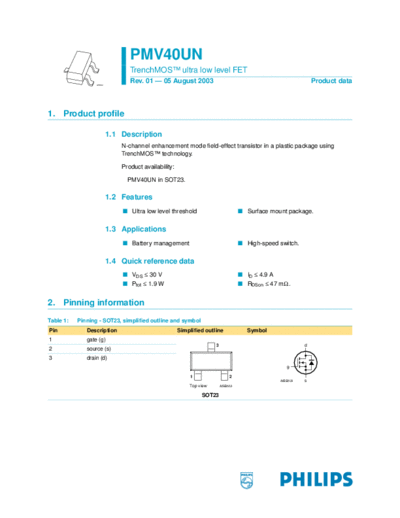

Image preview - the first page of the document



>> Download pmv40un documenatation <<

Text preview - extract from the document

                                  PMV40UN
                                  TrenchMOSTM ultra low level FET
                  M3D088
                                  Rev. 01 -- 05 August 2003                                                   Product data



1. Product profile

                           1.1 Description
                               N-channel enhancement mode field-effect transistor in a plastic package using
                               TrenchMOSTM technology.

                               Product availability:

                                 PMV40UN in SOT23.

                           1.2 Features
                               s Ultra low level threshold                         s Surface mount package.


                           1.3 Applications
                               s Battery management                                s High-speed switch.


                           1.4 Quick reference data
                               s VDS  30 V                                         s ID  4.9 A
                               s Ptot  1.9 W                                       s RDSon  47 m.


2. Pinning information
Table 1:   Pinning - SOT23, simplified outline and symbol
Pin           Description                              Simplified outline            Symbol
1             gate (g)
                                                                      3                                   d
2             source (s)
3             drain (d)
                                                                                                   g

                                                            1                 2
                                                                                                MBB076    s
                                                           Top view       MSB003

                                                                SOT23
Philips Semiconductors                                                                                                PMV40UN
                                                                                             TrenchMOSTM ultra low level FET


3. Ordering information
Table 2:          Ordering information
Type number                 Package
                            Name            Description                                                                                     Version
PMV40UN                     -               plastic surface mounted package; 3 leads                                                        SOT23


4. Limiting values
Table 3:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                                       Conditions                                                 Min                Max                Unit
VDS              drain-source voltage (DC)             25
