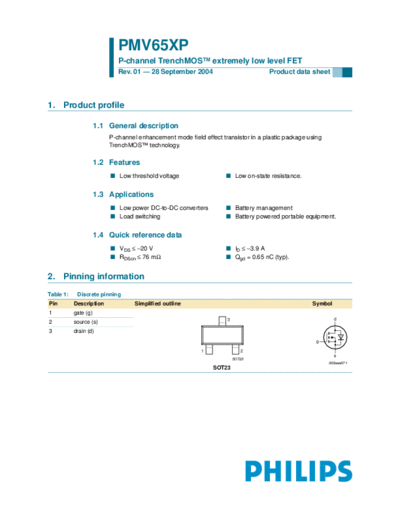

Image preview - the first page of the document



>> Download pmv65xp documenatation <<

Text preview - extract from the document

                             PMV65XP
                             P-channel TrenchMOSTM extremely low level FET
                             Rev. 01 -- 28 September 2004                           Product data sheet




1. Product profile

                      1.1 General description
                          P-channel enhancement mode field effect transistor in a plastic package using
                          TrenchMOSTM technology.

                      1.2 Features
                          s Low threshold voltage                   s Low on-state resistance.


                      1.3 Applications
                          s Low power DC-to-DC converters           s Battery management
                          s Load switching                          s Battery powered portable equipment.


                      1.4 Quick reference data
                          s VDS  -20 V                              s ID  -3.9 A
                          s RDSon  76 m                             s Qgd = 0.65 nC (typ).


2. Pinning information
Table 1:    Discrete pinning
Pin        Description             Simplified outline                                              Symbol
1          gate (g)
                                                                    3                                       d
2          source (s)
3          drain (d)
                                                                                                     g

                                                           1               2
                                                                                                            s
                                                                        SOT23
                                                                                                          003aaa671
                                                               SOT23
Philips Semiconductors                                                                                                 PMV65XP
                                                                         P-channel TrenchMOSTM extremely low level FET



3. Ordering information
Table 2:          Ordering information
Type number                 Package
                            Name            Description                                                                                     Version
PMV65XP                     SOT23           Plastic surface mounted package; 3 leads                                                        SOT23


4. Limiting values
Table 3:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                                       Conditions                                                 Min                Max                Unit
VDS              drain-source voltage (DC)             25
