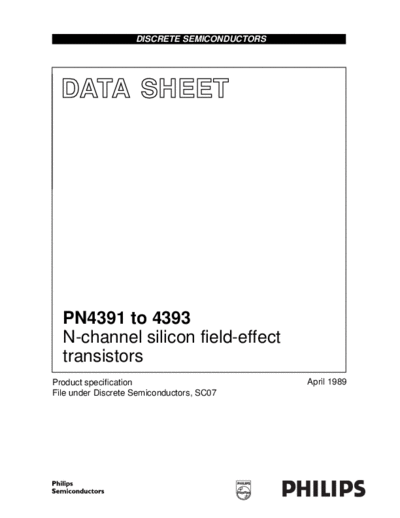

Image preview - the first page of the document



>> Download pn4391_pn4392_pn4393_cnv_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  PN4391 to 4393
  N-channel silicon field-effect
  transistors
Product specification                         April 1989
File under Discrete Semiconductors, SC07
Philips Semiconductors                                                                              Product specification


  N-channel silicon field-effect transistors                                                   PN4391 to 4393

DESCRIPTION
Symmetrical silicon n-channel
junction FETs in plastic TO-92
envelopes. They are intended for
applications such as analog switches,
choppers, commutators etc.


PINNING                                                      1
                                                handbook, halfpage
                                                              2
1 = gate                                                       3                                          d
                                                                                               g
2 = source                                                                                                s
                                                                                      MAM042
3 = drain


Note: Drain and source are
interchangeable.


                                                          Fig.1 Simplified outline and symbol, TO-92.


QUICK REFERENCE DATA
Drain-source voltage
