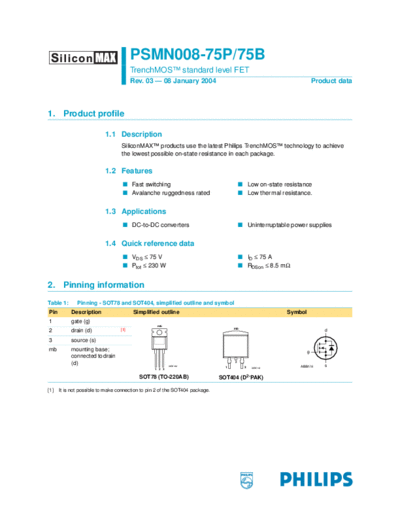

Image preview - the first page of the document



>> Download psmn008_75p_75b documenatation <<

Text preview - extract from the document

                                        PSMN008-75P/75B
                                        TrenchMOSTM standard level FET
                                        Rev. 03 -- 08 January 2004                                                   Product data



1. Product profile

                           1.1 Description
                                  SiliconMAXTM products use the latest Philips TrenchMOSTM technology to achieve
                                  the lowest possible on-state resistance in each package.

                           1.2 Features
                                   s Fast switching                                     s Low on-state resistance
                                   s Avalanche ruggedness rated                         s Low thermal resistance.


                           1.3 Applications
                                   s DC-to-DC converters                                s Uninterruptable power supplies


                           1.4 Quick reference data
                                   s VDS  75 V                                          s ID  75 A
                                   s Ptot  230 W                                        s RDSon  8.5 m


2. Pinning information
Table 1:      Pinning - SOT78 and SOT404, simplified outline and symbol
Pin        Description                  Simplified outline                                              Symbol
1          gate (g)
                                                  mb
                                  [1]                                               mb
2          drain (d)                                                                                                    d

3          source (s)
mb         mounting base;                                                                                        g
           connected to drain
                                                                                    2
           (d)                                           MBK106                                              MBB076     s
                                                 1 2 3
                                                                                1         3   MBK116



                                          SOT78 (TO-220AB)                    SOT404 (D2-PAK)

[1]   It is not possible to make connection to pin 2 of the SOT404 package.
Philips Semiconductors                                                                 PSMN008-75P/75B
                                                                                            TrenchMOSTM standard level FET


3. Ordering information
Table 2:          Ordering information
Type number                 Package
                            Name            Description                                                                                    Version
PSMN008-75P                 TO-220AB        Plastic single-ended package; heatsink mounted; 1 mounting hole; 3 leads SOT78
PSMN008-75B                 D2-PAK          Plastic single-ended surface mounted package; 3 leads (1 lead cropped)                         SOT404


4. Limiting values
Table 3:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                                       Conditions                                                Min                Max                Unit
VDS              drain-source voltage (DC)             25
