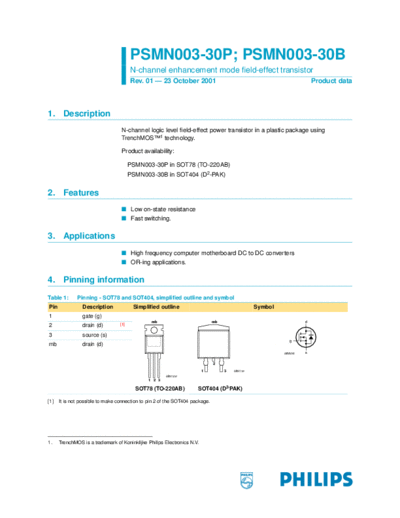

Image preview - the first page of the document



>> Download psmn003_30p-b documenatation <<

Text preview - extract from the document

                                        PSMN003-30P; PSMN003-30B
                                        N-channel enhancement mode field-effect transistor
                                        Rev. 01 -- 23 October 2001                                                    Product data



1. Description
                                  N-channel logic level field-effect power transistor in a plastic package using
                                  TrenchMOSTM1 technology.

                                  Product availability:

                                        PSMN003-30P in SOT78 (TO-220AB)
                                        PSMN003-30B in SOT404 (D2-PAK)


2. Features
                                  s Low on-state resistance
                                  s Fast switching.


3. Applications
                                  s High frequency computer motherboard DC to DC converters
                                  s OR-ing applications.


4. Pinning information
Table 1:      Pinning - SOT78 and SOT404, simplified outline and symbol
Pin             Description              Simplified outline                                     Symbol
1               gate (g)
                                                mb                            mb                                  d
2               drain (d)         [1]

3               source (s)
                                                                                                            g
mb              drain (d)
                                                                                                         MBB076   s

                                                                              2
                                                                         1         3   MBK116
                                                       MBK106
                                               1 2 3

                                          SOT78 (TO-220AB)           SOT404 (D2-PAK)

[1]   It is not possible to make connection to pin 2 of the SOT404 package.




1.    TrenchMOS is a trademark of Koninklijke Philips Electronics N.V.
Philips Semiconductors                                                             PSMN003-30 series
                                                                   N-channel enhancement mode field-effect transistor


5. Quick reference data
Table 2:          Quick reference data
Symbol Parameter                                     Conditions                                                 Typ                Max                Unit
VDS              drain-source voltage (DC)           Tj = 25 to 175
