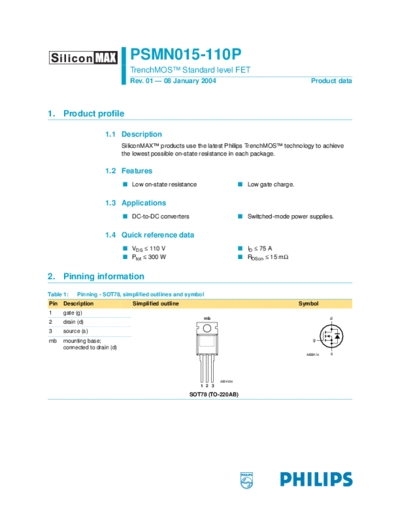

Image preview - the first page of the document



>> Download psmn015-110p documenatation <<

Text preview - extract from the document

                                  PSMN015-110P
                                  TrenchMOSTM Standard level FET
                                  Rev. 01 -- 08 January 2004                                         Product data



1. Product profile

                       1.1 Description
                               SiliconMAXTM products use the latest Philips TrenchMOSTM technology to achieve
                               the lowest possible on-state resistance in each package.

                       1.2 Features
                               s Low on-state resistance                    s Low gate charge.


                       1.3 Applications
                               s DC-to-DC converters                        s Switched-mode power supplies.


                       1.4 Quick reference data
                               s VDS  110 V                                 s ID  75 A
                               s Ptot  300 W                                s RDSon  15 m


2. Pinning information
Table 1:    Pinning - SOT78, simplified outlines and symbol
Pin Description                   Simplified outline                                             Symbol
1     gate (g)
                                                              mb                                            d
2     drain (d)
3     source (s)
mb    mounting base;                                                                                  g
      connected to drain (d)
                                                                                                   MBB076   s




                                                                   MBK106
                                                           1 2 3

                                                       SOT78 (TO-220AB)
Philips Semiconductors                                                                        PSMN015-110P
                                                                                            TrenchMOSTM Standard level FET


3. Ordering information
Table 2:          Ordering information
Type number                 Package
                            Name            Description                                                                                     Version
PSMN015-110P                TO-220AB        Plastic single-ended package; heatsink mounted; 1 mounting hole; 3 leads SOT78


4. Limiting values
Table 3:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                                       Conditions                                                 Min                Max                Unit
VDS              drain-source voltage (DC)             25
