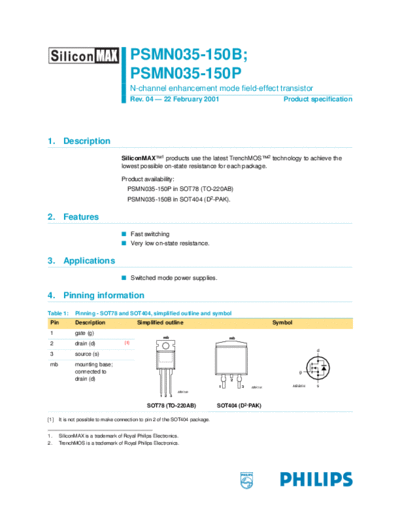

Image preview - the first page of the document



>> Download psmn035_150_series documenatation <<

Text preview - extract from the document

                                          PSMN035-150B;
                                          PSMN035-150P
                                          N-channel enhancement mode field-effect transistor
                                          Rev. 04 -- 22 February 2001                                  Product specification




1. Description
                                  SiliconMAXTM1 products use the latest TrenchMOSTM2 technology to achieve the
                                  lowest possible on-state resistance for each package.

                                  Product availability:
                                     PSMN035-150P in SOT78 (TO-220AB)
                                     PSMN035-150B in SOT404 (D2-PAK).


2. Features
                                  s Fast switching
                                  s Very low on-state resistance.


3. Applications
                                  s Switched mode power supplies.


4. Pinning information  c
                            c




Table 1:     Pinning - SOT78 and SOT404, simplified outline and symbol
 Pin         Description                    Simplified outline                                      Symbol
 1           gate (g)
                                                      mb                          mb
 2           drain (d)              [1]
                                                                                                                      d
 3           source (s)
 mb          mounting base;
             connected to                                                                                       g
             drain (d)                                                            2
                                                                              1        3   MBK116            MBB076   s
                                                             MBK106
                                                     1 2 3

                                               SOT78 (TO-220AB)               SOT404 (D2-PAK)

[1]   It is not possible to make connection to pin 2 of the SOT404 package.


1.    SiliconMAX is a trademark of Royal Philips Electronics.
2.    TrenchMOS is a trademark of Royal Philips Electronics.
Philips Semiconductors                                PSMN035-150B; PSMN035-150P
                                                                     N-channel enhancement mode field-effect transistor


5. Quick reference data
Table 2:         Quick reference data
Symbol           Parameter                            Conditions                             Typ               Max                  Unit
VDS              drain-source voltage (DC)            Tj = 25 to 175
