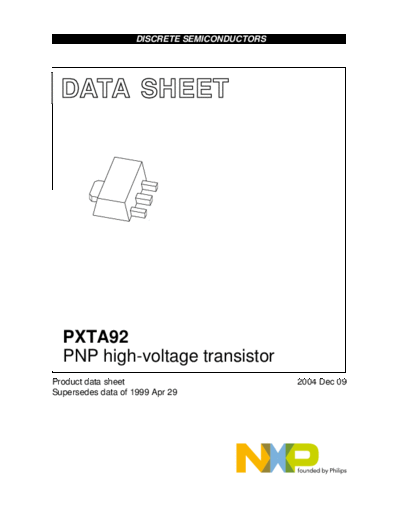

                    DISCRETE SEMICONDUCTORS




   DATA SHEET

 dbook, halfpage




                       M3D109




    PXTA92
    PNP high-voltage transistor
Product data sheet                            2004 Dec 09
Supersedes data of 1999 Apr 29
NXP Semiconductors                                                                                    Product data sheet


  PNP high-voltage transistor                                                                                   PXTA92

FEATURES                                                        PINNING
