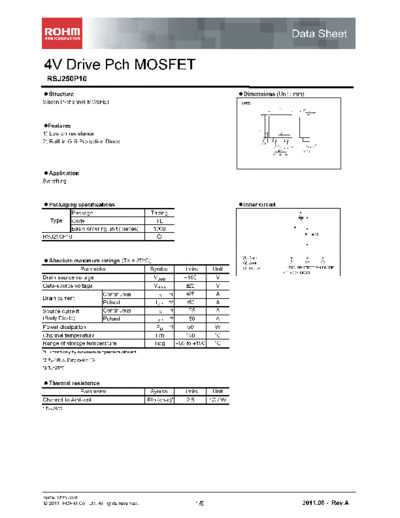

Image preview - the first page of the document
rsj250p10


>> Download rsj250p10 documenatation <<

Text preview - extract from the document
                                                                                                                                          Data Sheet


4V Drive Pch MOSFET
  RSJ250P10
 Structure                                                                                 Dimensions (Unit : mm)
Silicon P-channel MOSFET                                                                   LPTS
                                                                                                                          10.1                    4.5
                                                                                                                                                         1.3




Features




                                                                                                       9.0
                                                                                                    13.1
1) Low on-resistance.                                                                                                     1.24




                                                                                                              1.0
2) Built-in G-S Protection Diode.




                                                                                                        3.0
                                                                                                                      2.54                         0.4




                                                                                                                                                          1.2
                                                                                                                                       0.78
                                                                                                                          5.08                     2.7
                                                                                                                    (1)   (2)    (3)




 Application
Switching



 Packaging specifications                                                                  Inner circuit
         Package                                   Taping                                                                                     1

   Type  Code                                        TL
         Basic ordering unit (pieces)               1000
                                                                                                                                                               2
RSJ250P10


                                                                                           (1) Gate
 Absolute maximum ratings (Ta = 25C)                                                       (2) Drain                                    (1)        (2)             (3)

                  Parameter                        Symbol            Limits        Unit    (3) Source                            1 ESD PROTECTION DIODE
                                                                                                                                 2 BODY DIODE
Drain-source voltage                                VDSS             100            V
Gate-source voltage                                 VGSS              20            V
                              Continuous                ID    *1      25            A
Drain current
                              Pulsed                    IDP   *2      50            A
Source current                Continuous                 IS   *1      25            A
(Body Diode)                  Pulsed                    ISP   *2      50            A
Power dissipation                                       PD    *3      50           W
Channel temperature                                 Tch               150          C
Range of storage temperature                        Tstg           55 to 150       C
*1 Limited only by maximum temperature allowed.
*2 PW10s, Duty cycle1%
*3 TC=25
